Show Control System: How do I make a button to control a Cisco StadiumVision player?

Topic

  • Display Studio control a Cisco Stadium Vision player
  • Show Control's Display Studio script buttons

With the proper widget and Data Server software, Display Studio can control a Cisco StadiumVision player. For more information, see StadiumVision document and the steps below.

Environment

  • Product:
  • Component: Data Server, Display Studio
  • Control System: Show Control System (SCS)



Steps

Creating a Display Studio Scripting Button

  1. Right-click within a Scripting Container and select New Button
  2. In Step 1: Choose System Control
  3. In Step 2: Choose Advanced
  4. In Step 3: Choose Play
  5. In Step 4: Enter in the applicable information in the fields as follows:

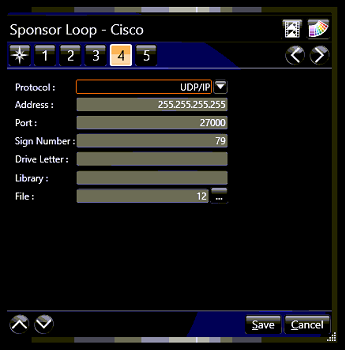

    Cisco StadiumVision Sponsor Loop Step 4 Button Updated.PNG

    a. Protocol: Leave as default value (UDP/IP).

    b. Address: Leave as default value (255.255.255.255).

    c. Port: Enter port number configured for DMN Data Server, typically 27000.

    d. Sign Number: Enter sign number configured for Cisco StadiumVision system, typically 79.

    e. Drive Letter: Leave blank.

    f. Library: Leave blank.

    g. File: Enter GPI Number (Command Number) that corresponds to the command you wish to execute on the Cisco system.

    1. Note: GPI numbers must be a numeric value between 1-65. Other values will not be processed by Data Server.

  6. When finished, click Save to save the button.

Data Server Settings

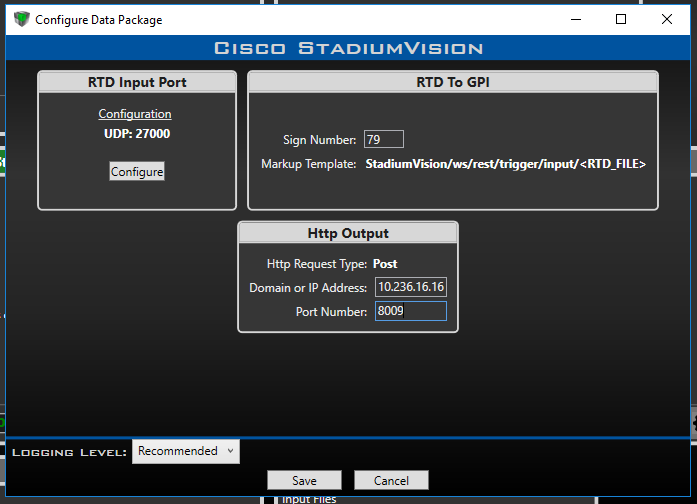

Data Server Cisco StadiumVision Widget Settings.PNG

Type of Setting

Example of Value

IP Address of StadiumVision system

10.236.16.16

Port that should be used on StadiumVision system

8009

Path that must be included in HTTP POST Request

StadiumVision/ws/rest/trigger/input

Sign # assigned to StadiumVision system

79

Example of HTTP POST request that is issued: http://10.10.10.83:8080/StadiumVision/ws/rest/trigger/input/3

The above example settings are for a GET request, without authentication, to trigger number 3 on the Cisco StadiumVision Director at IP Address 10.10.10.83.


 Additional Resources

Show Control System: How do I create script buttons?

Advanced Option Under System Control is Missing from Display Studio

Cisco and StadiumVision are trademarks or registered trademarks of Cisco Systems, Inc. in the United States and/or other jurisdictions.

KB ID: DD3485151
