How Do I Configure Inputs in the Analog Way NeXtage 16 Processor?

Topic

  • How Do I Configure Inputs in the Analog Way NeXtage 16 Processor?

Environment

  • Analog Way Processor
  • Analog Way NeXtage 16
  • Web RCS

Steps

  1. Click on Setup in the upper left-hand side of the interface
  2. Click on Inputs towards the upper center of the the interface.
  3. If not already selected, click on General on the left hand side of the interface.
  4. Find the input you wish to edit and mouse over it. Click the gear icon that shows up. If desired, click the "AutoSet All" button to auto-sync the inputs to the proper sources.
    Inputs 1.PNG

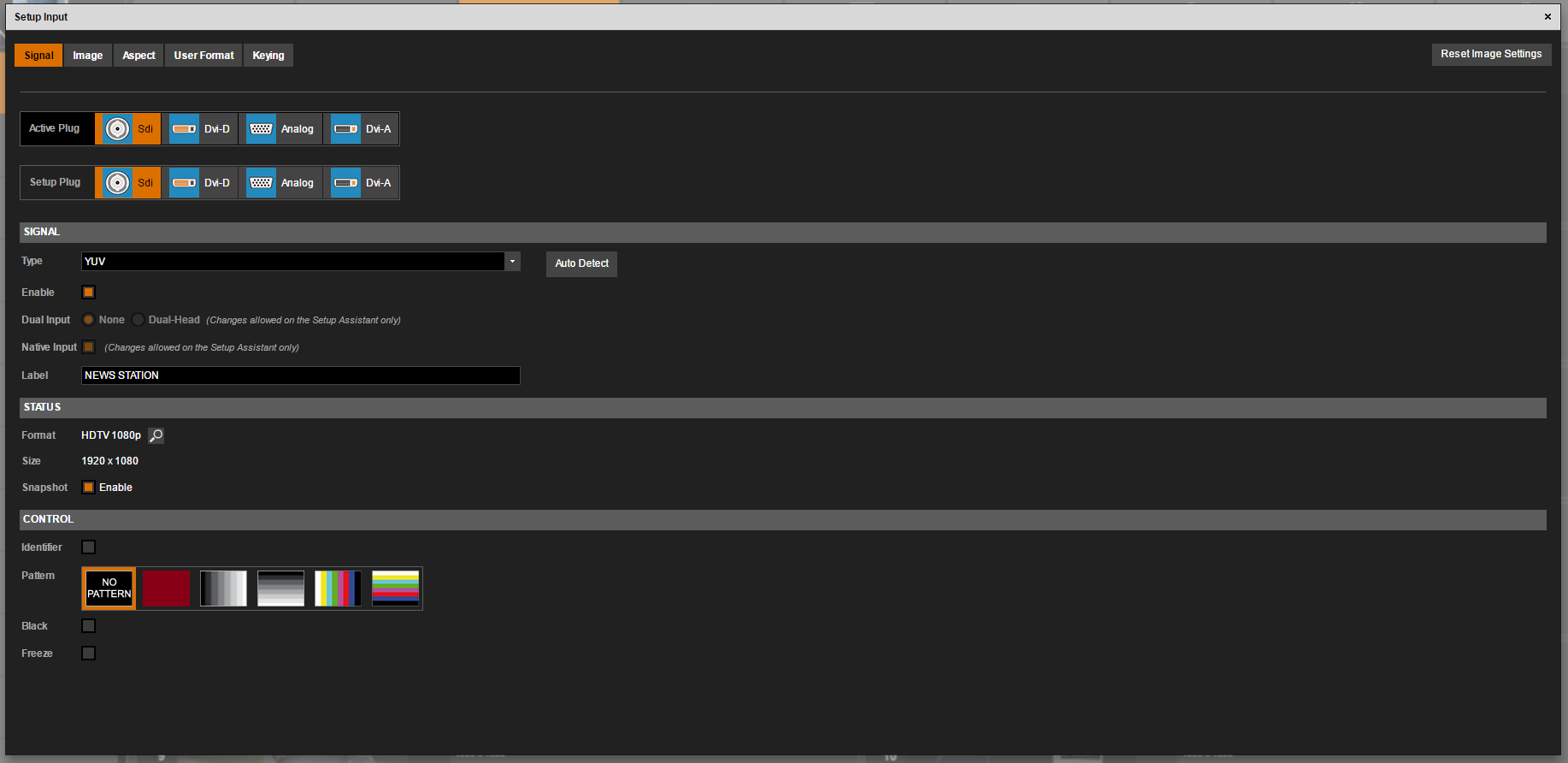

  5. When the menu comes up, click on Signal and chose the plug you will be receiving a signal from and add a label to the signal. You can also play a test pattern from this location.
    Inputs 2.PNG

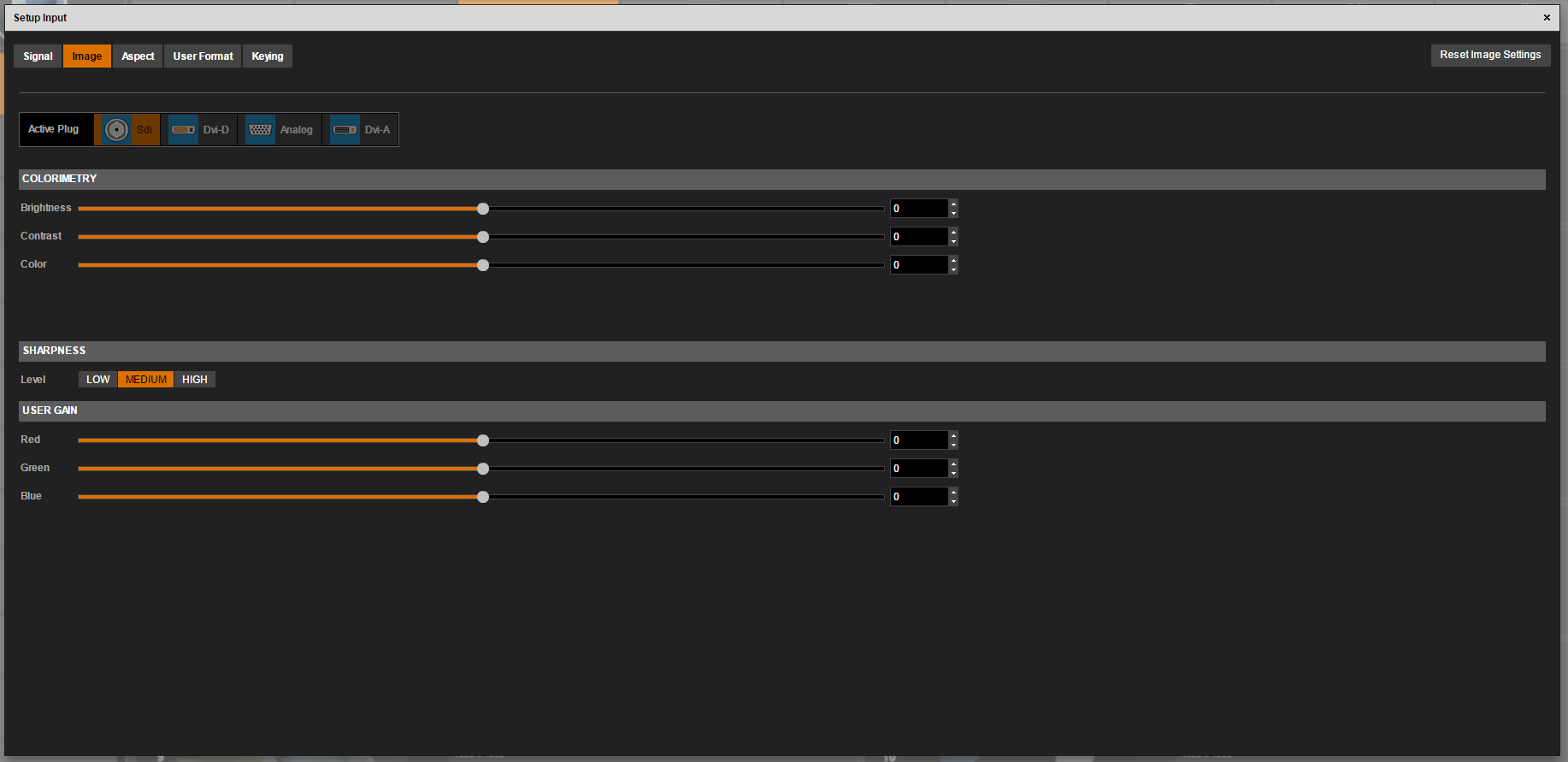

  6. Click on Image if you wish to change the colormetry, gain, or sharpness of an image.
    Inputs 3.PNG

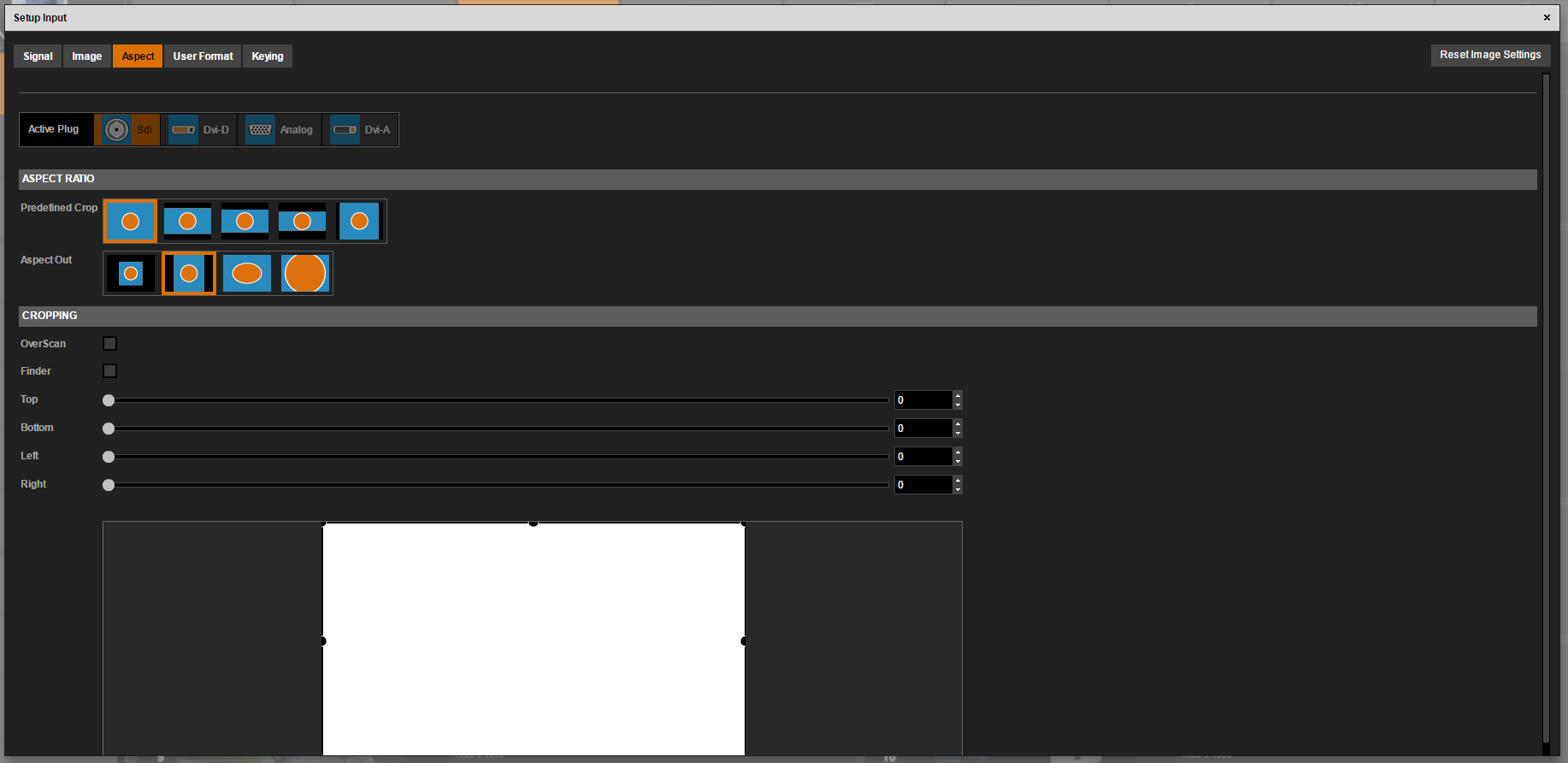

  7. Choose the Aspect option if you wish to change the aspect ratio, or cropping of the image.
    1. Aspect in- confirms the source to a pre-defined aspect.
    2. Predefined crop- crops the black from a source according to a specified aspect.
    3. Aspect out- defines ho the source will be displayed in the given layer
    4. Cropping- crops the source to the specified window.
      Inputs 4.PNG
  8. Chose the Keying option if you want to use the input as part of a key layer. How to utilize keying (LiveCore™ platform)
    Inputs 5.PNG
  9. Repeat for other inputs as needed.
