How do I Load or Restore a Configuration File for an Analog Way NeXtage 16 Processor?

Topic

  • How do I Load or Restore a Configuration File for an Analog Way NeXtage 16 Processor?

Environment

  • Analog Way Live Core Series Products (Analog Way Processor )
    • NeXtage 16
    • Ascender 32
    • Ascender 48

Steps

  1. Go to the setup menu by clicking on the Setup button on the top left-hand corner.
  2. Next, Click on the Services button in the top right-hand side of the interface.
  3. Click on the Import/Export button on the left-hand side.
  4. Click the Upload button.

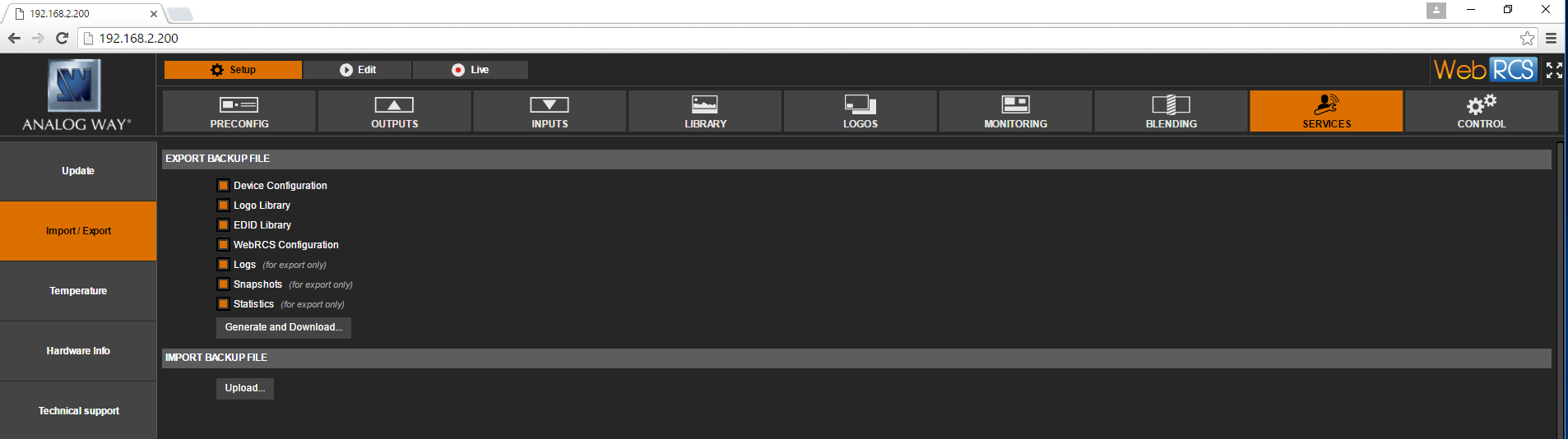

    Backup 1.PNG
  5. Browse and find the file you wish to import and then click the Upload button.
    Upload 2.PNG
  6. The Web RCS file will unpack in the interface and then allow you to chose which components you wish to import.

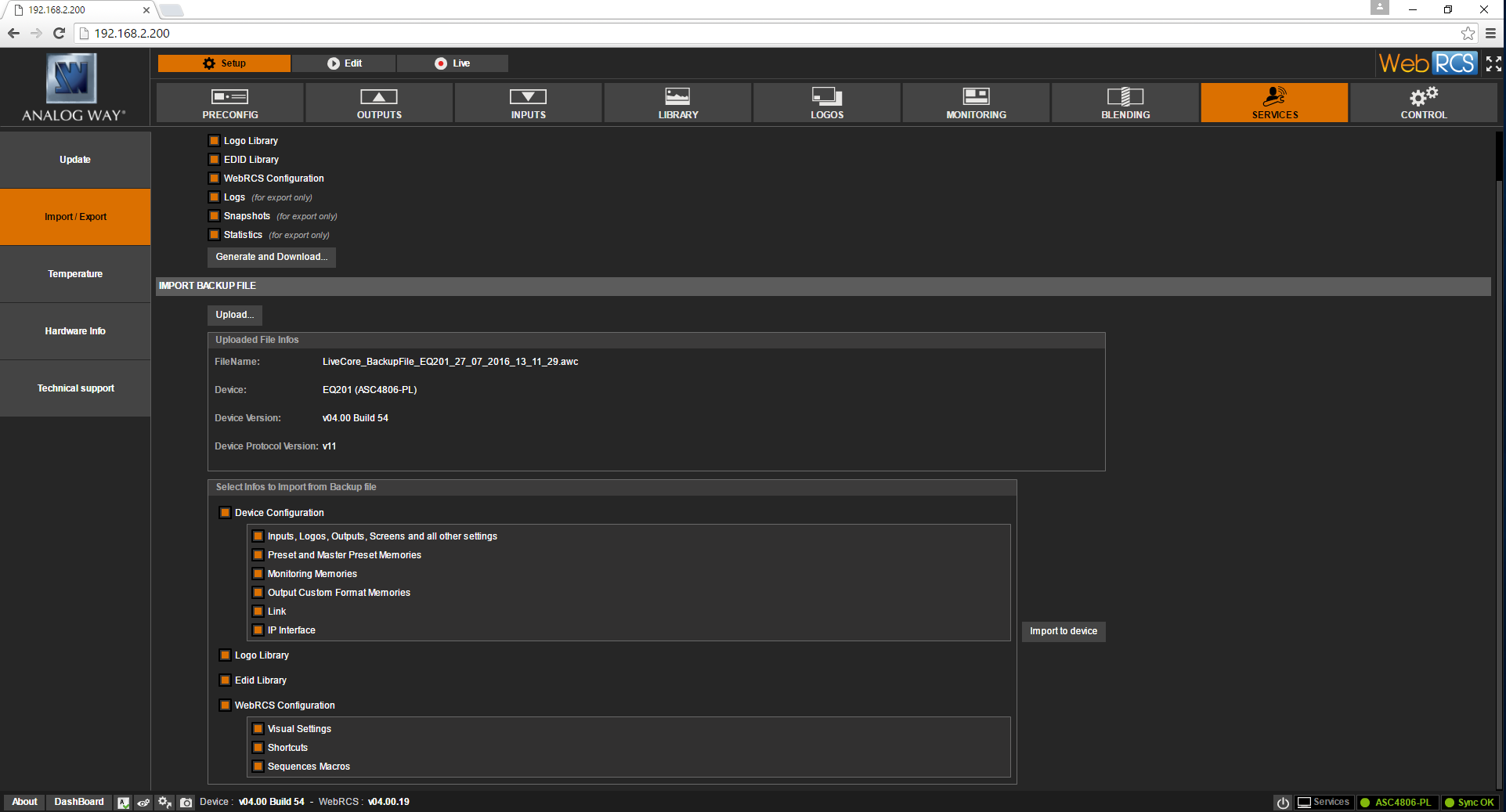

    Upload 4.PNG
  7. To finish, click "Import to Device"

KB ID: DD3421678
