How to collect RSSI data from the FLXR3 radios

Topic

  • How do I collect RSSI data from the FLXR3 radios?

Environment

  • Product Family: Digit and Price Displays
  • Product: FL-3000
  • Component: FLXR3 Radios
  • Control System:

Steps

  1. Connect a laptop to the access point and login to the web configuration page.
  2. To gather data for individual subscriber units, remove checkmarks from all other subscriber units. Only the subscriber unit being tested should have a checkmark next to it.
    7-19-2016 2-21-15 PM.jpg
  3. Select "apply".
  4. Log out of the web configuration page.
  5. Cycle power to the access point.
  6. Log back in to the web configuration page.
  7. Send price updates to the displays three times using the DM-100.

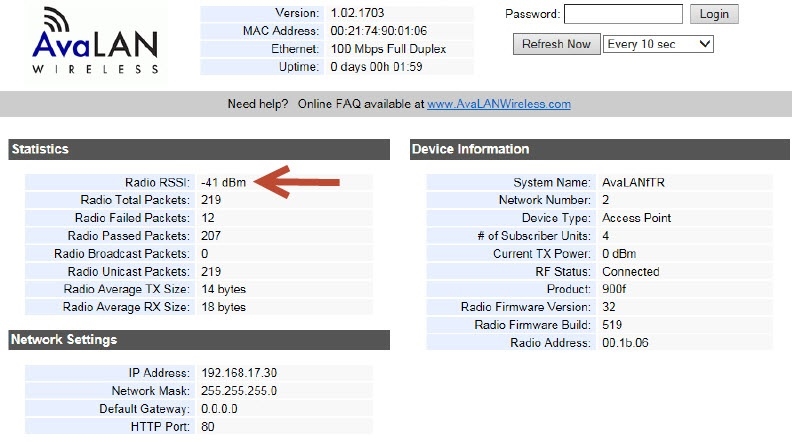

  8. The RSSI data is located in the upper left-hand corner of the web configuration page.
  9. Repeat steps 2 - 8 for each additional subscriber unit.

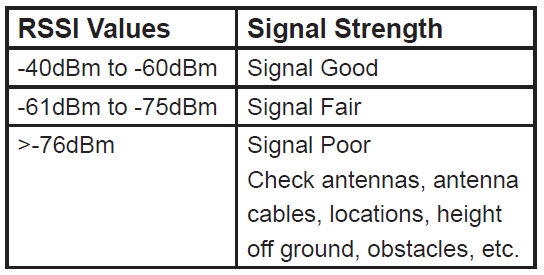

  10. If the RSSI value is higher than 60 for any subscriber unit, the installation for that ID will need to be evaluated.
    1-4-2017 2-25-43 PM.jpg
