6000 Processor: How to run and operate the DisplayPort tool for the DI-6000 and VP-6000 via command lines
Topic
- How do I run and operate the DisplayPort tool for the DI-6000 and VP-6000 via command lines?
- This tool enables service technicians to export the EDID file, verify configuration, and verify received signal status.
Environment
- Product Family: Video Processors
- Product: DI-6000, VP-6000
- Components: DP tool
- Control System:
Steps
- Log into the DI-6000 or VP-6000 using Putty. 6000 Processor: How to log in using PuTTY .
- Syntax
- v27.2 and higher command: (cardid is dependent on how DP signal is being taken in. For example, cardid will typically equal 1 for a DI-6000).
- sudo -u kadoka dptool rx get sts --cardid 1
- To watch an auto updating refresh:
- sudo -u kadoka watch -c -d -n 1 dptool rx get sts --cardid 1
- v26.0 and lower: (cardid is dependent on how DP signal is being taken in. For example, cardid will typically equal 1 for a DI-6000)
- dptool rx get sts --cardid 1
- To watch an auto updating refresh
- watch -c -d -n 1 dptool rx get sts --cardid 1
- v27.2 and higher command: (cardid is dependent on how DP signal is being taken in. For example, cardid will typically equal 1 for a DI-6000).
- The main thing to look for is all green in the Link Status section.

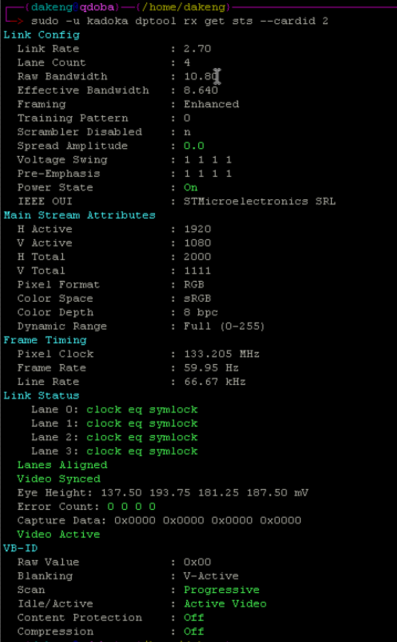

- A good example will look something like this:
- Confirm resolution is being received properly by confirming the values under Main Stream Attributes.

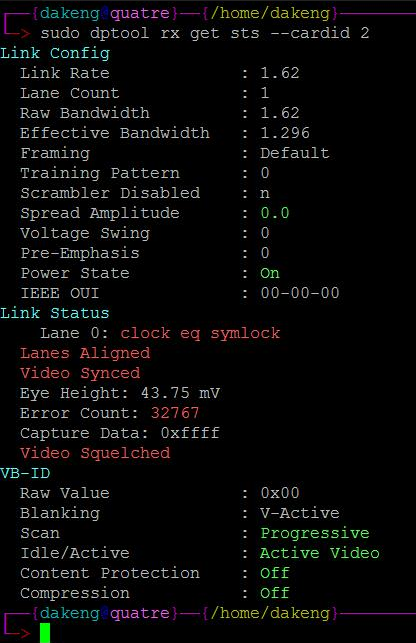

- Here is an example status of a bad link
