6000 Processor: How to view DI-6000 diagnostics via web browser?

Topic

  • How to view DI-6000 diagnostics via web browser?

Environment

  • Product: 6000 Series Processors
  • Component: Diagnostics, Command Lines
  • Control System:

Steps

There are some settings that can be checked by using a web browser. These are settings that are usually controlled by Venus Control Suite.  The computer using the web browser must be on the same network as the DI-6000.

The settings include:
  1. Active/Inactive status
  2. Current dimming value
  3. Dimming manager status
  4. Dimming manager configuration

NOTE: For all addresses, enter the DI-6000s IP address instead of IP_ADDRESS

ProLink6 Active/Inactive status

  • http://IP_ADDRESS/daktronics/syscontrol/2.0/active
  • Shows a true if active or false if inactive. Isn't card specific.

Current ProLink6 dimming value

  • http://IP_ADDRESS/daktronics/syscontrol/2.0/dimming/managers/0/dynamic
  • Shows the dimming value on a 0 to 1 base system
    • 0.000000 would be a dimming level of 0%
    • 0.738000 would be a dimming level of 73.8%
    • 1.000000 would be a dimming level of 100%
  • This shows the current manual dimming value. If the DI-6000 has GPS dimming enabled, this will not be the actual current dimming value. See below how to check the output dimming value (Filtered Dimming)

Dimming manager status

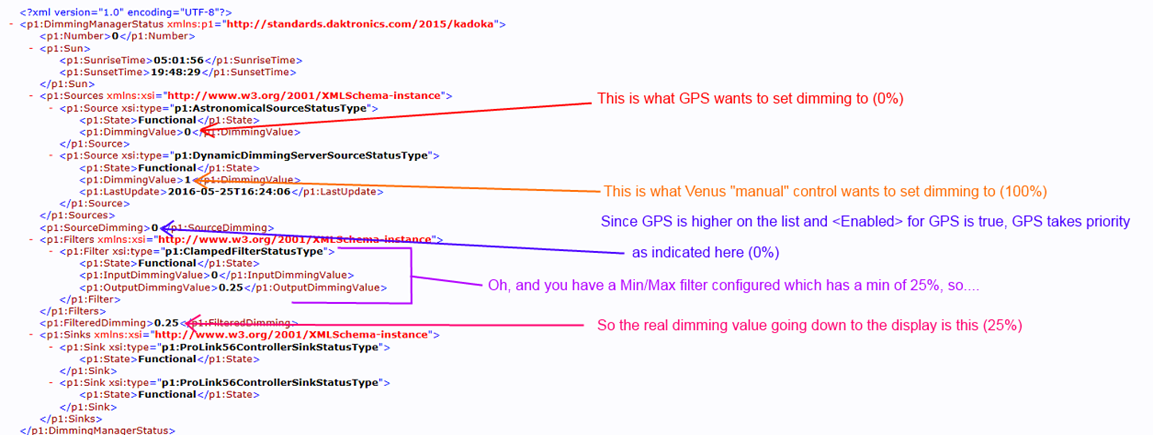

http://IP_ADDRESS/daktronics/syscontrol/2.0/dimming/managers/0/statusDI6000DimmingStatus.png

 Dimming manager configuration

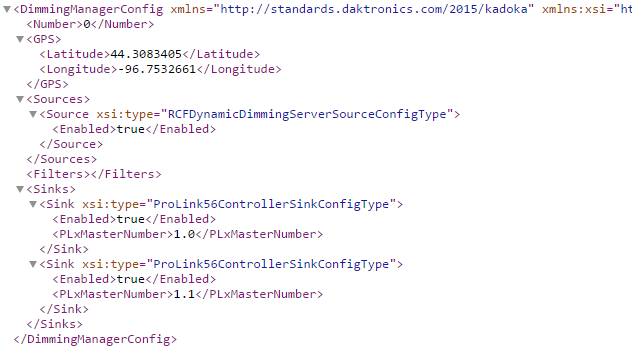

  • http://IP_ADDRESS/daktronics/syscontrol/2.0/dimming/managers/0/config


dimming manger config.png
