All Sport data is being overridden by DakStats/Stat Crew data on video board

Potential Symptoms

  • All Sport data entered will show up on the video board, but it will be overridden with DakStats/Stat Crew data when DSTI refreshes its data.
  • All Sport says 'Stats received, key disabled'
  • Getting RTD to video display controller via serial output from All Sport.

Environment

  • Product Family: Sports Product, Integration
  • Product:
  • Component:  Stat Crew or DakStats, DSTI, Serial RS-232 All Sport feed
  • Control System: All Sport 5000

Cause

  • DSTI is sending DakStats/Stat Crew data over the All Sport port and they are being overridden in the All Sport feeds that go to the boards.

Resolution

  • In DSTI, click Edit, then Configure All Sport

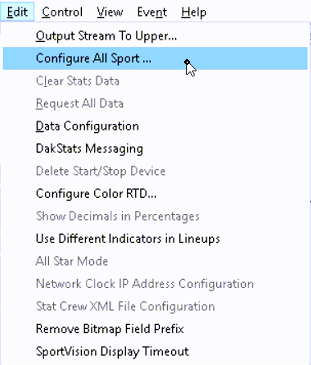

    • Edit Configure Allsport.png
  • Uncheck the TX port in the lower left corner

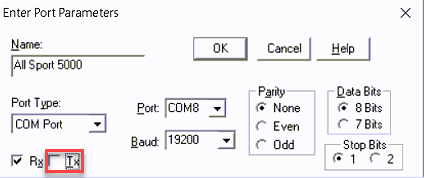

    • Uncheck TX with box.PNG
  • Click OK. DSTI will freeze while it makes this change
  • Verify stats are no longer being overridden
    • If All Sport data is still overridden, reboot the All Sport and resume game. That will complete the changes

KB ID: DD3303284
