RC-100/RC-200 remote start stop not controlling DOG/Game Clock, RJ-11 cable not flipped

Potential Symptoms

  • RC-100/RC-200 remote start stop not controlling the Delay of Game Clocks via the All Sport.
  • Can reset the DoG clock and start/stop time when using a normal wired handheld pendant.

Environment

  • Product Family: Scoreboard
  • Product: RC-100 Game CtLK/DOG Remote Start/Stop Kit (0A-1110-0106), RC-200 Game CLK/DOG Remote Start/Stop Kit (0A-1110-0074)
  • Component: RJ-11 cable (0A-1120-0176)
  • Control System: All Sport 5000

Cause

  • RJ11 cable running from j-box to the connection on the back of the All Sport console is straight through. It needs to be flipped.

Resolution

  • Use the flipped cable provided with the kit. Or, if that one is incorrect, order the correct cable from Daktronics.

Work Around

  1. Re-terminate current cable so flipped.

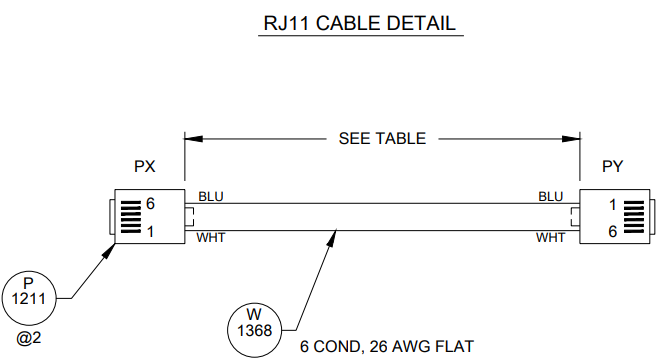

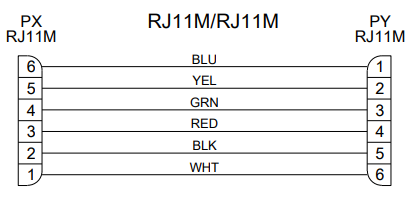

  2. See images:






KB ID: DD3269137
