Unable to capture HDMI from a laptop into DMP-8000 using a BlackMagic Shuttle

Potential Symptoms

  • HDMI connected from laptop to BlackMagic Shuttle HDMI in and not capturing video using VNet or BlackMagic Media Express.

Environment

  • Product: DMP-8000
  • Component: BlackMagic Intensity Shuttle
  • Control System: Laptop with HDMI

Cause

  • BlackMagic Design control panel settings set incorrectly.

Resolution

  • Set the laptop secondary monitor to 1280x720 with a refresh rate of 60 Hertz.

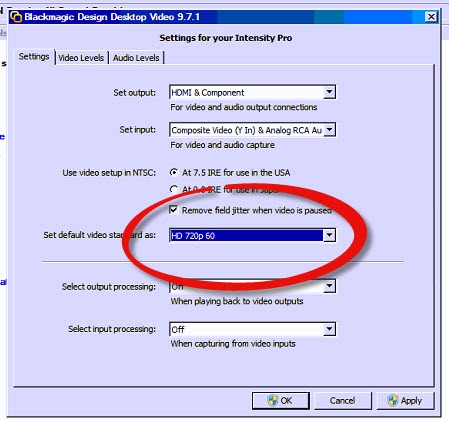

    1. Start -> Control Panel -> BlackMagic Design Desktop Video.
    2. Set default video standard as -> HD 720p 60.
  • 7-8-2015 2-03-32 PM.jpg

KB ID: DD3093230
