Content Studio: How do I use the content paging?

Topic

  • Content paging
  • Timeline tools

Environment

  • Product:
  • Components: Content Studio
  • Control System: Venus Control Suite, Venus 1500, Show Control
Also see: Content Studio: How do I make content that pages data?

Steps

  1. Start with a new layout in Content Studio.  Click on the Insert Tab and then click the Paging icon in the Media panel.

  2. Holding your left mouse key down, click in the layout and drag out a box to represent your Paging area, or the area that will change while the rest of the display remains static.
    If the Paging area does not draw exactly where you want it, you can move it by releasing the left mouse key to get a yellow box around your Paging area.  Then just grab the small white box in the top left corner and drag the Paging area to the desired location.

  3. Create your presentations with static text on one side; this is the text that will be seen all the time.  Create Paging presentation within the Paging area; this content will "page" through the number of pages you create.

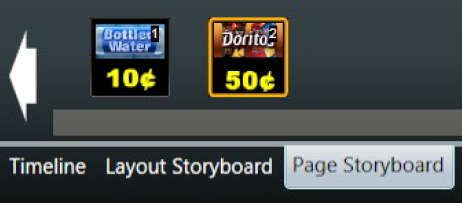

  4. When Paging is selected, you will also see a Page Storyboard tab at the bottom of Content Studio, next to your Timeline and Layout Storyboard.

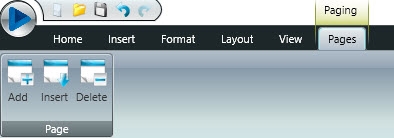

  5. You can add multiple pages by first selecting the paging area, and then clicking on the Pages tab at the top of Content Studio, and using the Add or Insert icon in the Page Group.




KB ID: DD3000788
