TriCaster Studio: How to reseat the VT or video card for a Daktronics system

Topic

How do I reseat the VT card or video card in my Tricaster Studio computer?

Environment

  • Tricaster Studio

Steps

  1. If the unit is currently running, shutdown the Tricaster.

  2. Once the unit is off disconnect the power cable from the back. To ensure any residual power is drained from the machine touch the 3 prongs inside the power supply where the power cable attaches. Now you will need to remove the TriCaster case, to do this you will find 3 screws along the outer edge of the back of the machine.  Remove these screws and the case will easily slide off.
    tricaster image 1.jpg

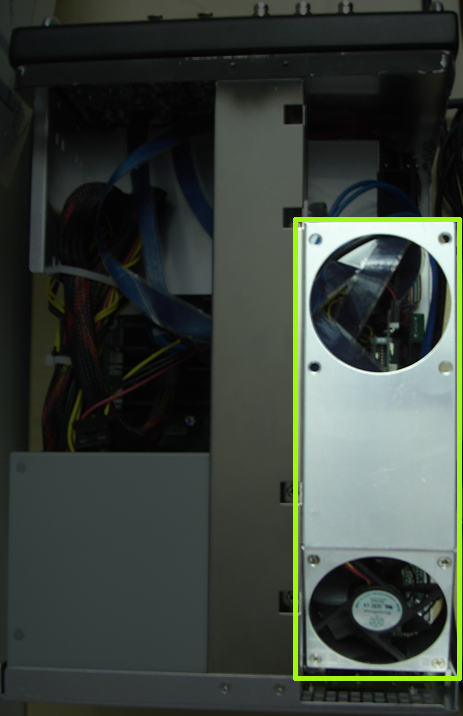

  3. In order to get to the card you will need to remove the top fan and the bar holding it in place.
    tricaster image 2.png

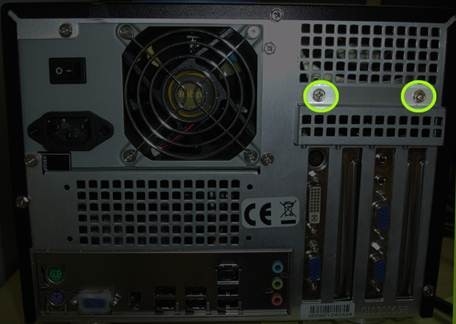

  4. You will find two screws on the back of the machine holding a small vented cover on
    tricaster image 3.jpg

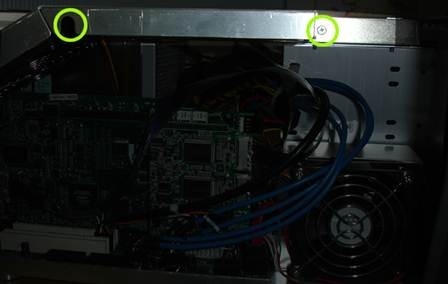

    as well as two screws along the middle of the top of the machine holding the fan bar in place.
    tricaster image 4.jpg

  5. Once those screws are removed, the fan bar assembly should lift upwards.

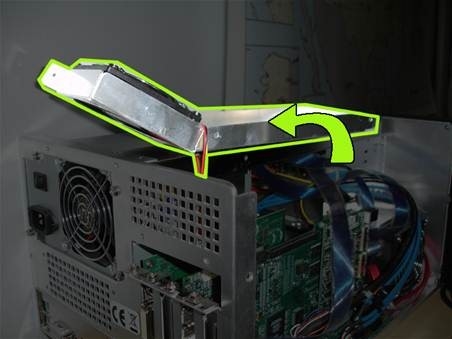

  6. Lift the fan bar assembly up and lay it upside down on the top of the TriCaster.  There is no need to unplug the power line for the fan.
    tricaster image 5.jpg

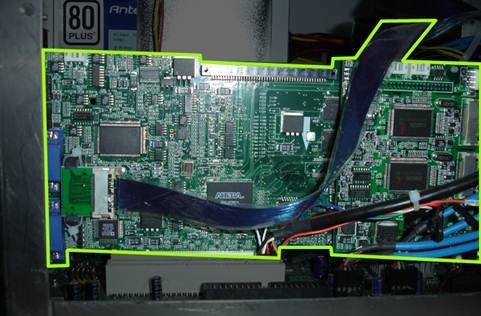

  7. The card can now be accessed: Remove the one downward facing screw holding the VT card in on the back of the TriCaster unit.
    Note: The VT card is identified by being the card installed just to the right of the graphics card on the right side of the machine.  The back of the card will have 2 blue VGA ports that are unused and should be capped, and inside the machine there will be blue ribbon cables attached to it.
    tricaster image 6.jpg

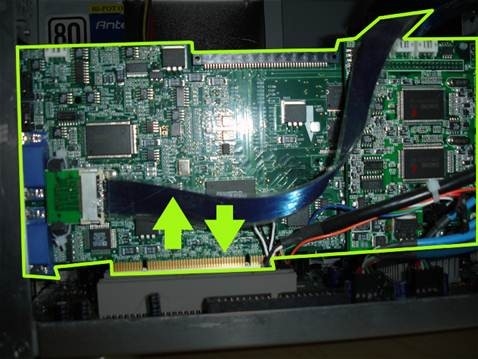

  8. Gently pull the VT card up from the motherboard and firmly re-seat it.
    tricaster image 7.jpg

  9. Also make sure all the cables are firmly seated in place.

  10. With the card reseated, put the unit back together then power it on and check if your problem has been resolved.

KB ID: DD2914841
