TriCaster: How to push content out composite to a Black Magic device for a Daktronics System.

Topic

  • How does the TriCaster Studio push out a composite feed.
  • DVI output capabilities on the TriCaster Studio have failed and need a back-up for emergency operation.



Environment

  • TriCaster Studio
  • DMP-8000/VNet
  • Black Magic Intensity Pro/Shuttle

Steps

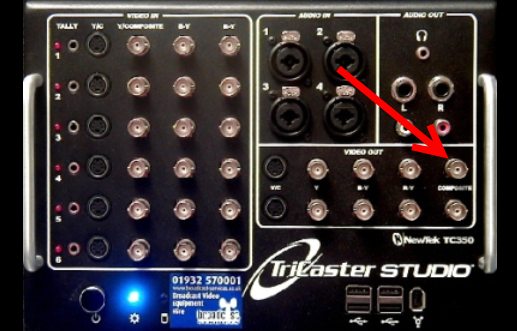

  • Using a BNC to RCA adapter (HE-1136) on the TriCaster side, connect to the Composite Output (see image below) and run an RCA cable to the Composite Input on the Black Magic device being used.

9-12-2014 4-20-09 PM.png


  • Create a button in SCS (if one doesn't already exist) that plays the Composite.vmpl file from the DMP.

This is meant to be used as a work-around only for short term resolutions.  This will also cause the audio to not push to the DMP, so if audio is used from the TriCaster, it will now need a direct run from the TriCaster to the mixer.

KB ID: DD2881581
