Display Studio: How do I remove old player and IP configurations?

Topic

  • How do I remove old player and IP configurations from Display Studio?
  • IP address of the sign was changed but the old IP address is still showing in the status area in the Display Studio window.

Environment

  • Show Control (SCS) Version 1.24.3.2 and greater
  • Display Studio
  • M3

Steps

  1. With Display Studio window open, be sure to close all workspaces.
  2. Click on Display Studio menu (Orange cube in upper left corner).

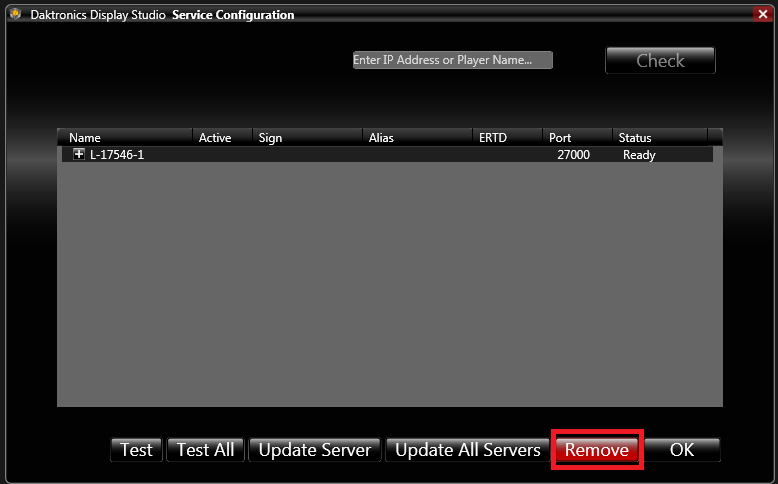

  3. Hover over Properties and then click on Service Configuration.
  4. Select IP configuration or player that is no longer needed and click Remove.


KB ID: DD2881333
