Daktronics

Vanguard Software message default settings

Potential Symptoms

  • Default font in Vanguard software is a 7x4 font, and I want to change it to something bigger so I don't always have to change it when creating a message in content studio each time.
  • How to change default message settings for large matrix Vanguard signs / displays.

Environment

  • Product Family: Transportation
  • Product: Vanguard
  • Component: Software Message Defaults, Content Studio
  • Control System: Vanguard Professional

Cause

  • Message Default font is set to 7X4, and it is too small to read on large displays.

Resolution

  • Login to Vanguard software, click on Tools tab, then click on System Configuration, then click on Set Message defaults.
  • Select the Display type you want to change, then click on set defaults for selected display type.
  • Change message default information to something larger.

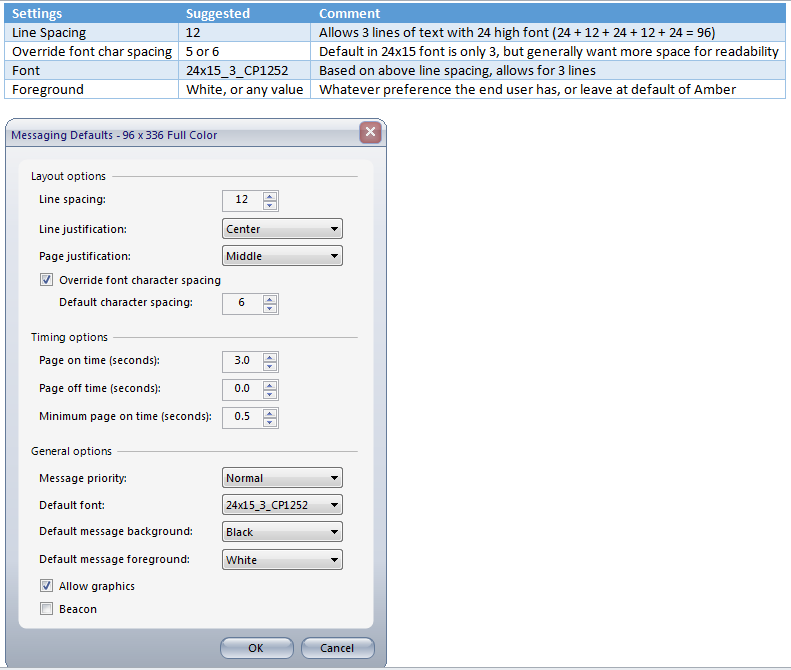

  • Below is an example in the software.

FOnt .PNG

KB ID: DD2825087
