How do I remove the outdoor magnetic modules?

Topic

  • How do I remove the outdoor magnetic modules?

Environment

  • Product: DVX-1800
  • Component: Outdoor Surface Mount (SMT) LED module
  • Control System:

Steps

Rear access

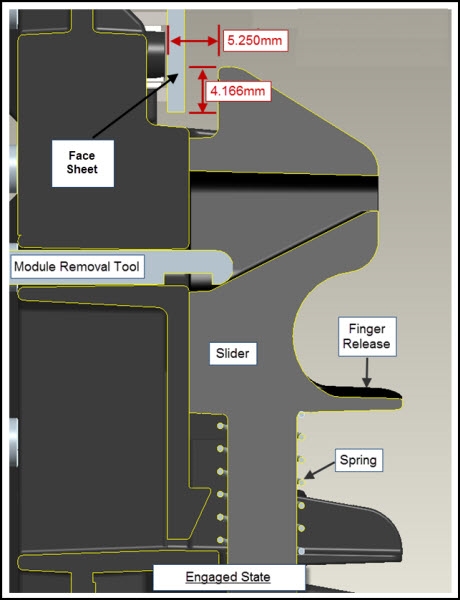

A finger tab was designed into the slider for tool less release

  1. Grab the rear handle with your right hand.
  2. Using finger release, press slider down compressing the spring to allow the catch to clear the module face sheet.
  3. Push module forward using handle.

Front Access

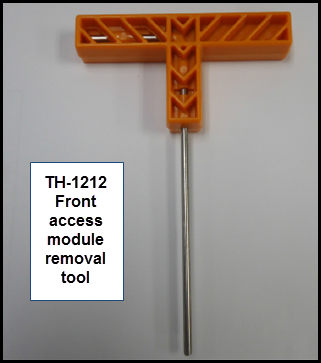

There is a special tool needed for module removal. (TH-1212; ACCESS TOOL; THEIA OUTDOOR SMT PLATFORM MODULE)

  1. Insert the tool with the groove side facing down through the access hole located at top right of module. (no longer top middle)
  2. You will feel the tool compress the slider and will feel the groove catch and lock on slider.
  3. Pull the module out using tool.
    Note: to remove the tool from the module, rotate the tool 180° and pull it out.
4-14-2014 9-58-05 AM.jpg 4-14-2014 10-07-54 AM.jpg
