AF-3060, Loopback passes on client, No communication to the display, Client serial radio not terminated correctly into controller.

Potential Symptoms

  • Loopback test passes on the client radio but can not connect to the display.

Environment

  • AF-3060 display
  • Gen II Serial Radios
  • Client radio is connect to TB2 on the controller

Cause

  • Client radio is connected to the RS-422 input of the controller. It should be connected to the RS-232 input of the controller (TB1).

Resolution

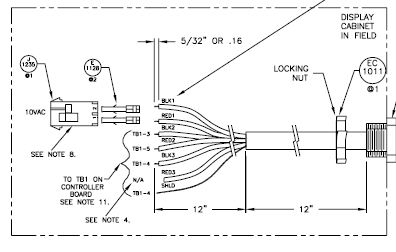

  • Connect the client radio to the controller as shown below.
     Client Radio AF-3060.JPG

KB ID: DD2697463
