What settings are needed to integrate DataLink from a Daktronics TV feed?

Topic

  • What are the settings for DataLink to get the truck feed from DSTI or All Sport CG?

Environment

  • Product: LiveText
  • Component: DataLink
  • Control System: DSTI; All Sport CG

Steps

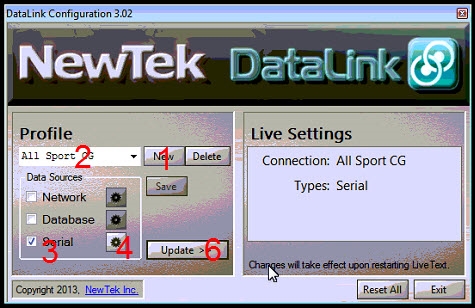

  • You will need to open up DataLink and create a Profile for the Daktronics Truck (TV) Feed.
    1. Click "New".
    2. Type description for your profile  window.
    3. Check "Serial".
    4. Click on gear.

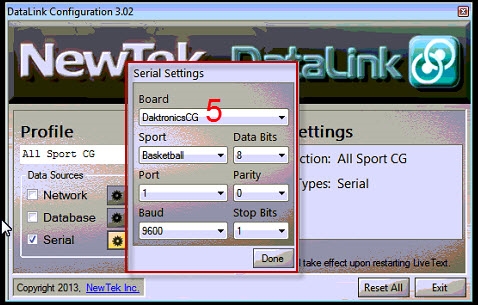

    5. Match settings in box pictured below, then "Done".
    6. Click "Update".
      12-4-2013 5-54-24 PM.jpg
      12-4-2013 5-53-44 PM.jpg
  • If profile is already made, select it from the profile dropdown and click "Update"

KB ID: DD2690562
