Axis P55XX PTZ web camera will not move

Potential Symptoms

  • Newly installed P5512 will not move.
  • The camera does not go through the full-range motion test upon boot up.

Environment

  • Axis P5512 PTZ Web cam
  • Axis P5514 PTX Web cam

Cause

  • The protective packaging was not removed before installation.

Resolution

  • Remove the protective packaging.
    1. Remove the camera from its mounting (outside enclosure, ceiling mount).

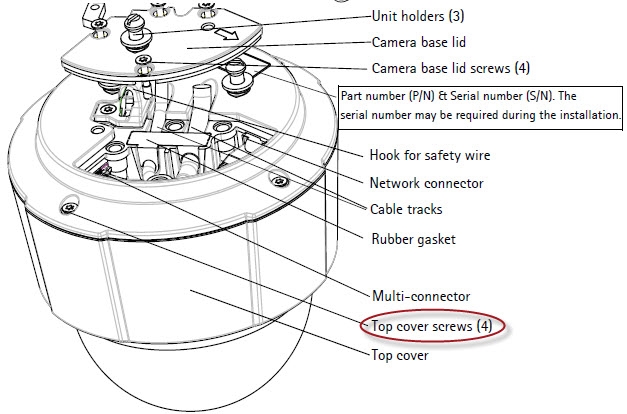

    2. Loosen the 4 top cover screws and remove the top cover.
      P5512 screws.jpg
    3. Remove the protective packing.
      P5512 cover.jpg
    4. Reassemble the top cover.
Camera Installation Guide

KB ID: DD2678249
