How do I eliminate the IP from displaying upon bootup of the display?
Topic
- How do I eliminate the IP from displaying upon bootup of the display?
- How do I eliminate the IP from the bootup sequence for security purposes?
Environment
- Galaxy
- M2Config Utility Software
- AF-3150, AF-3160, AF-3180, AF-3190, AF-3200, AF-3220, AF-3400, AF-3500, AF-3550, AF-3700
- M2 or M3 based controllers
- Electronic Message Center (EMC), Marquee, Electronic Message Board (EMB), Display
Steps
- Open M2Config (Warning: Misuse of this utility can render your display inoperable.)
- a. Install M2Config: How to download & install the M2Config Utility on your computer?, DD2059662.
- b. Connect to the display using M2Config: How to connect to my Galaxy display using the M2Config Utility?, DD2342173.
- If not selected, click on the Display folder under the "Configuration" tab.

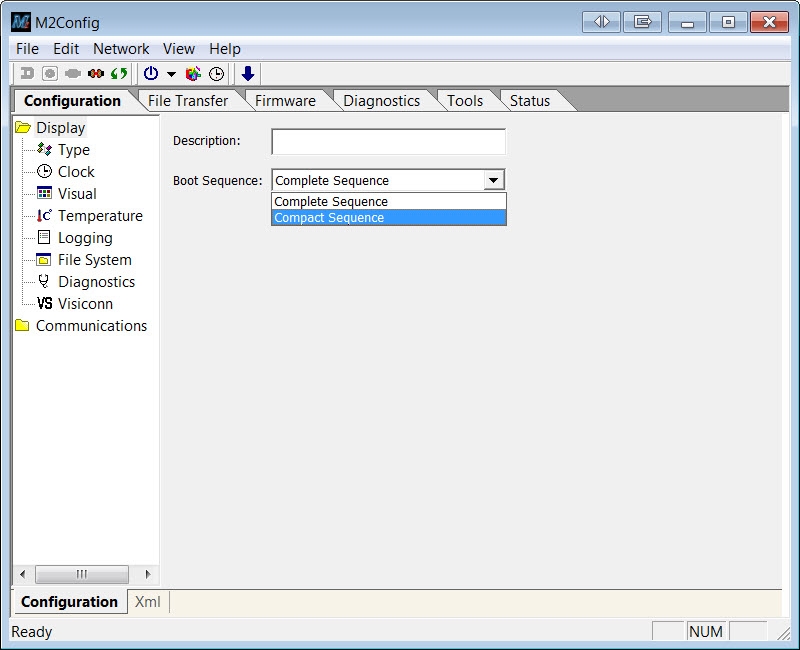

- In the "Boot Sequence" drop down menu, select Compact Sequence.
- Send the new configuration settings to the display by clicking the blue Upload arrow or
- Go to File
- Select Set Configuration

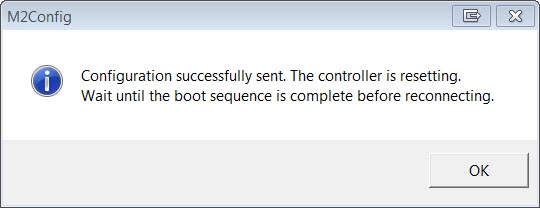

- M2Config will let you know that the configuration was sent successfully and the display will reboot.
KB ID: DD2662598
