Shot Clock: Transparent Clocks do not show Shot Clock time, Firmware update required.
Potential Symptoms
- Transparent, clear, shot clocks do not show shot clock time.
- Not displaying Power On Self Test (POST) when power is applied.
- The following must always be present/true:
- All on test works.
- Correct All Sport code.
- Driver is addressed to 1.
- Shot clock time works on a standard non-transparent shot clock.
- Driver's dip switches are properly configured for NBA.
Environment
- Product Family: Sports Product
- Products: BB-215x, BB-2150, BB-2151, BB-216x, BB-2160, & BB-2161
- Components:
- Control System: All Sport 5000
- All Sport 5010 ED-11543 v4.0.2 or newer
- All Sport 5100 ED-11544 v4.0.2 or newer
- All Sport 5500 ED-16411 v4.0.8 or newer
Cause
- All Sport 5010 v4.0.2, All Sport 5100 v4.0.2, or All Sport 5500 v4.0.8 firmware version or higher is required when the BB-215x or BB-216x 3rd shot clock 1/10 sec digit is enabled.
Resolution
- Order exchange or locate All Sport 5010 or 5100 with latest firmware version or with at least v4.0.2
- Order exchange or locate All Sport 5500 with latest firmware version or with at least v4.0.8
For Temporary Operation

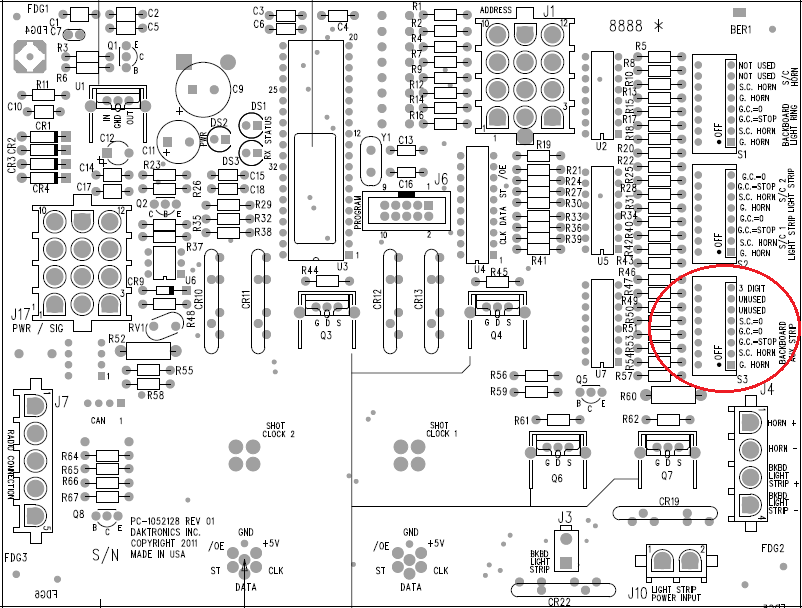

- To get through an event and show shot clock time without the 3rd shot clock digit, set S3-8 dip switch on the 0P-1322-0006 driver to off.
BB-216x

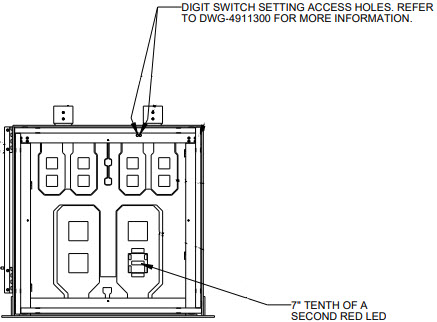

- To get through an event and show shot clock time without the 3rd shot clock digit, set left dial switch to "0" up in the top perimeter of each shot clock.
KB ID: DD2538997
