RC-100 will not communicate to the scoreboard, base station set to client mode

Potential Symptoms

  • Cannot connect to the base station with the RC-100 via any channel.
  • Receives error: "No server found on channel."
  • Amber "In range" light does not flash at all during boot up sequence.

Environment

  • Product Family: Sports Product
  • Product:
  • Component: Base Station
  • Control System: RC-100

Cause

  • The X1 base station jumper is set to client rather than server.

Resolution

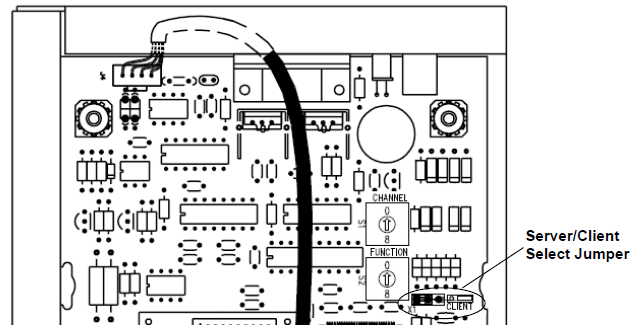

  • Set the base station jumper to server mode.
    • Server mode uses the left and middle pins of the X1 jumper.


KB ID: DD2506964
