Venus 1500 version 4: How do I change brightness or dimming for certain times of the day in V4?

Topic

  • How to change brightness or dimming for certain times of the day in V4?

Environment

  • Product Family: Software
  • Product: Only supported on Galaxy and GalaxyPro AF-3700 displays (NOT supported on GPX series)
  • Component:
  • Control System: Venus 1500 4.17 and up

Steps

  1. Go up to the Application menu (orange V) and select Venus 1500 Options button.
  2. Click on Scheduling in the left column.
v1500 scheduling.png
  1. Check the box to Enable brightness scheduling.
  2. Click the OK button.
  3. Click on the Schedule Tab in Venus 1500 software.
  4. Click Add and select Brightness.
schedule brightness.png
  1. Put in a description.
  2. Click on Manual and select the brightness on the bar.

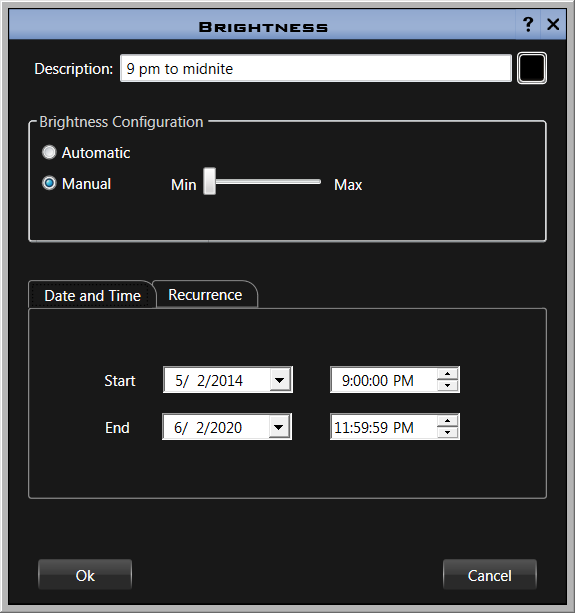

schedule brightness 2.png
  1. Set a start and end date as well as a start and end time and select OK.**
  2. If this is recurring, you will need to also set a recurrence.**

**NOTE:  If scheduling overnight, see Venus 1500 v4: How to schedule overnight or past midnight, make display blank at night, or create dayparting playlists .

KB ID: DD2439880
