How do I wire an outdoor j-box for my time and temp display?

Topic

  • How do I wire an outdoor j-box for my time and temp display?

Environment

  • Product Family: Time and Temp Displays
  • Product: DF-1010, DF-1011, DF-1012
  • Components: Outdoor J-Box
  • Control System: DM 100

Steps

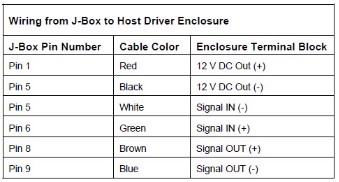

  • See wiring table below:
    • Note: The blue and brown wires are not needed for communication to the display. These wires were added at a later time and are used only for diagnostics within the DM-100 handheld.

Annotation 2019-07-22 150418.jpg

  • Detailed information for wiring the j-box to the Enclosure Terminal Block can be found in the following Manuals/Drawings.  Please review both Drawings to determine if it matches your enclosure style.

KB ID: DD2426470
