Scorers Table: Outlets on table do not work

Potential Symptoms

  • Outlets and/or Possession Indicator on Scorer's Table do not work.

Environment

  • Product: Scorers Table, ST-2011
  • Component: outlets
  • Control System:

Cause

  • End users converted the 4 prong cable to 3 prong and did not connect the fourth wire.

Resolution

  1. All four wires in the power cable must be connected to get power. The green is ground, white is neutral, red and black are hot.
  2. The black wire supplies power to the outlets and possession indicator.
  3. The red wire supplies power to the power modules for the LED display.

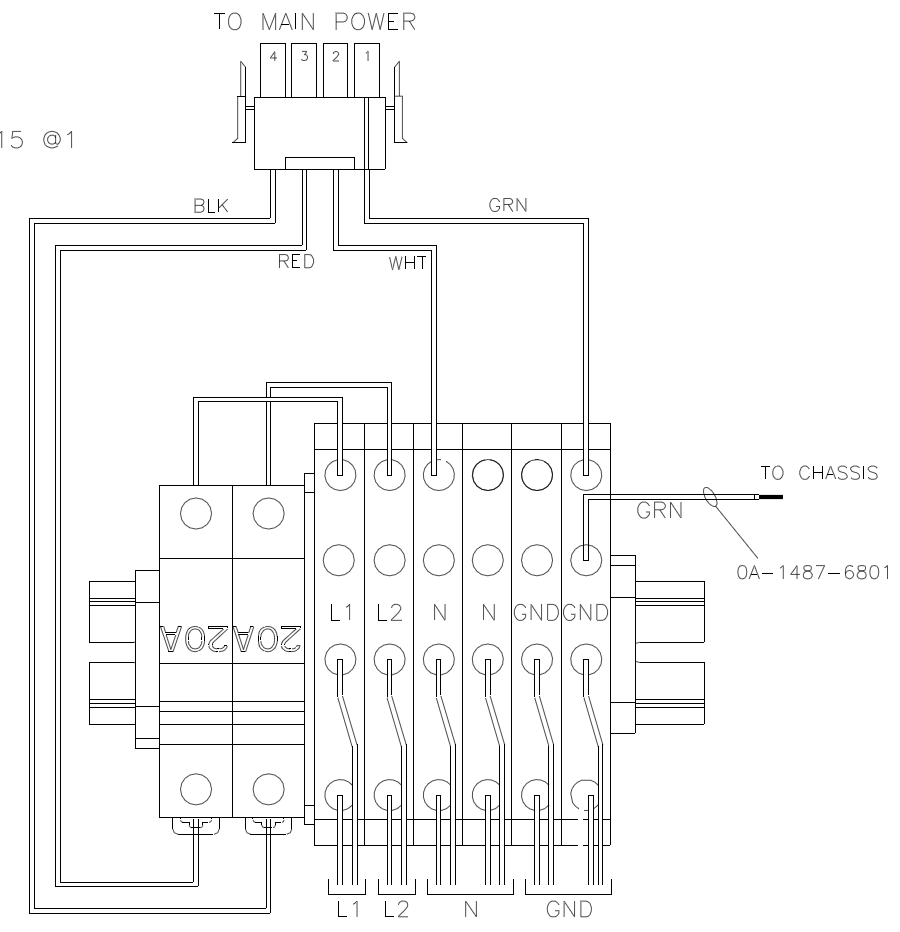

    st power.png

KB ID: DD2417202
