Time and Temp Display is blank, No power light is lit on driver, Getting 0 VDC out of the power supply.
Potential Symptoms
- Display is blank.
- Both displays (host and client) are blank.
- Getting 0 VDC out of the power supply even though there is 120 VAC into the power supply.
- Power LED is not lit on the driver (all lights on the driver are off).
Environment
- Product Family: Digit and Price Displays
- Product: DF-1010, DF-1011, DF-1012, Time & Temperature Digit Display
- Component: Power Supply
- Control System: DM-100
Cause
- Failed power supply.
Resolution
- Replace power supply.
Tech Notes

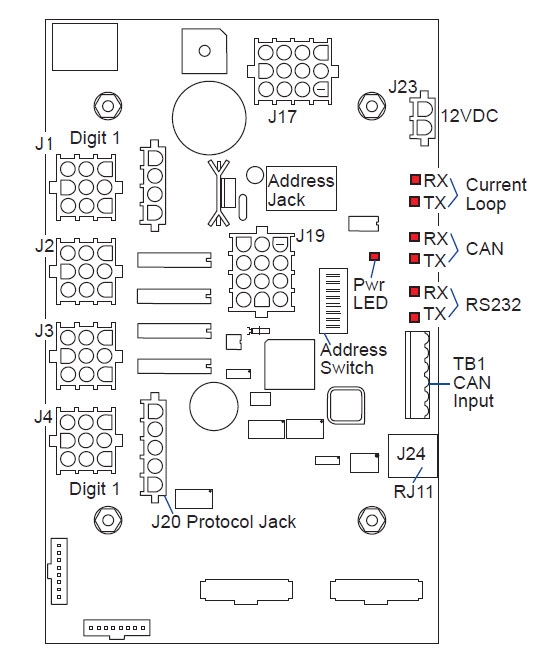

- Power LED on host driver location can be seen on the following picture:
- Always verify a good connection for incoming voltage on the terminal block and the cabling going to the power supply.
- Adjust/move power supply cables while still plugged in to find loose connections. If digits flicker or go out when cables are moved may have a poor connection that needs to be reseated or have the cable replaced.
KB ID: DD2412660
