My audio system has very little volume

Potential Symptoms

  • My audio system has very little volume even though everything on the mixer levels look fine.

Environment

  • Announcer's Console
  • RDL RU-MX4 mixer

Cause

  •   The audio output is set to Mic instead of Line level.

Resolution

  1. Unplug AC power and signal from the Announcer's Console.
  2. Remove the front cover on the announcer console.
  3. Remove the mixer out of its housing.
  4. Find the audio output jack on the back of the mixer.
  5. Set the Output "Line Mic" switch to "Line".

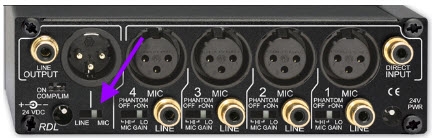

    RDL RU-MX4.jpg
  6. Reassemble the Announcer's Console.

KB ID: DD2403623
