Only vertical or horizontal segments lighting on the digits; Driver failure

Potential Symptoms

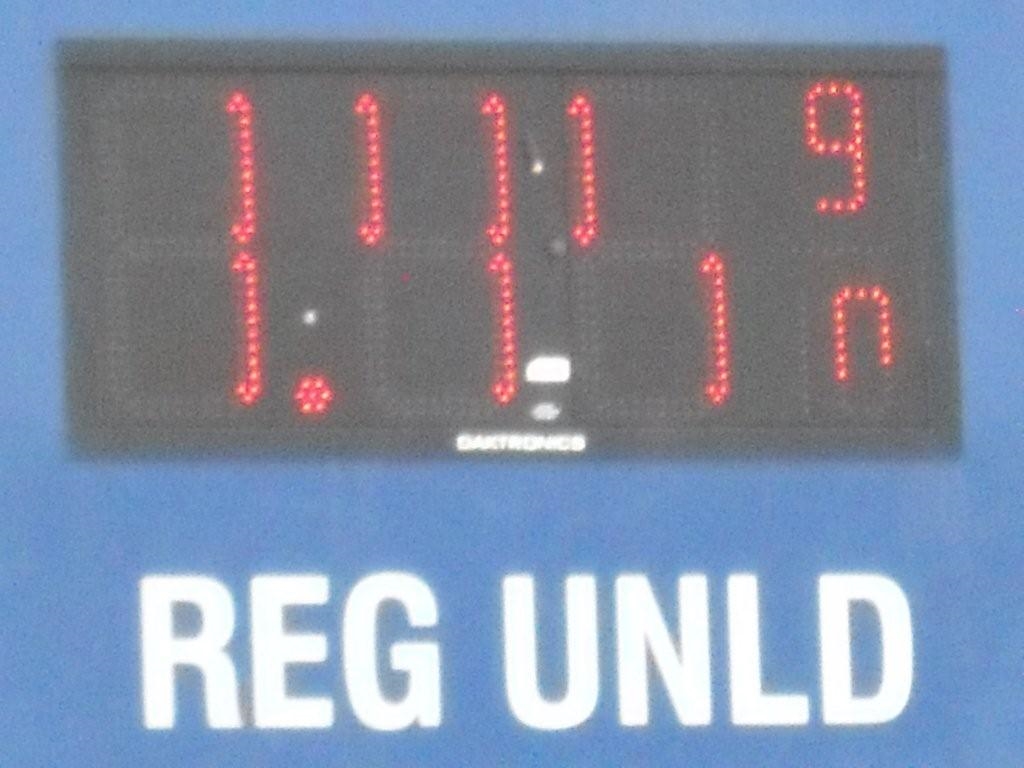

  • Fuelight display only has vertical segments or only the horizontal segments lighting on price digits and is able to communicate.
    • May show as only the middle horizontal segments to look like dashes across each number instead of a price.
  • Problem follows the driver when installed into a known working display.



Environment

  • Product Family: Digit and Price Displays
  • Product: FL-2000 series gas price display
  • Component: Thin digit driver
  • Control System:

Cause

  • Driver failure.

Resolution

  • Replace driver.

KB ID: DD2355296
