How do I use the recurrence feature when scheduling a playlist in Venus 1500 V4 Software?

Topic

  • How do I use the recurrence feature when scheduling a playlist in Venus 1500 V4 software?
  • How do I create a playlist to run for only certain hours of the day?
  • How do I setup messages to run for multiple days, but only on a single day like Monday or Tuesday?

Environment

  • Product Family: Software
  • Product: Venus 1500 Version 4
  • Component: Schedule
  • Control System:

Steps

  1. Launch Venus 1500 V4 Software.
  2. Click the Schedule Tab.
  3. Choose Add --> Playlist (Must be in Schedule Mode, see How to Switch to Scheduled Mode, DD1996807).
  4. Provide the playlist with a Description, such as 'Playlist A' or 'Lunch Special'.
  5. Click the Green Plus Sign button, browse and select desired presentation(s) and click Open.

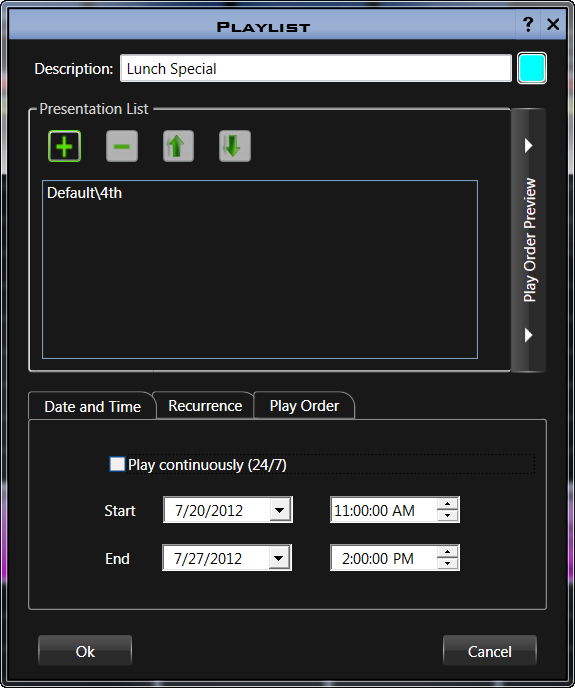

  6. On the Date and Time tab, set the dates and times you would like the presentations to run.
    • For example, Start Date: 7/20/12 End Date: 7/27/12; Start Time: 11:00 a.m. End Time: 2:00 p.m.

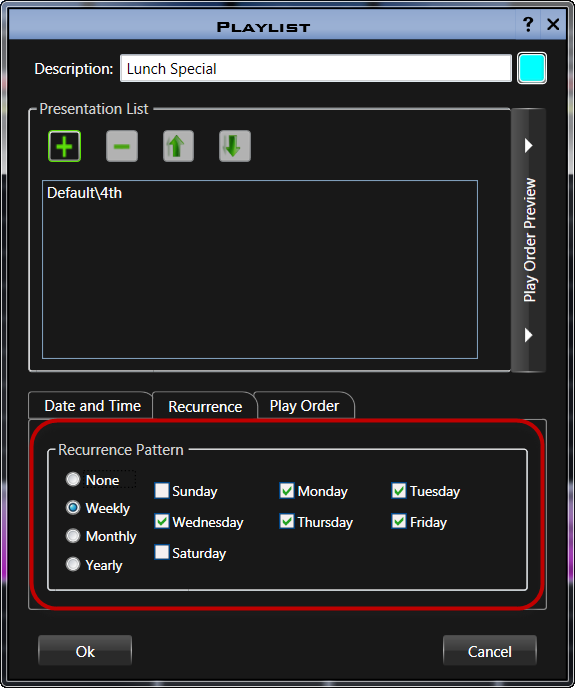

  7. Click the Recurrence tab.
  8. Select Weekly, and choose desired days of play.
    • For example: Only check Monday through Friday.

  9. Click Ok.
    • The playlist (Lunch Special) will start on 7/20 and only play Monday through Friday from 11 a.m. to 2 p.m. until it ends on 7/27.


KB ID: DD2341901
