Using DakStats Rodeo with DMP-8000

Potential Symptoms

How do I use DakStats Rodeo to play DMP-8000 sequences?

Environment

  • DakStats Rodeo 3000
  • DMP-8000

Resolution

  1. In DakStats Rodeo, go to Configure > Display Buttons, then right-click the Results field and select Configure.

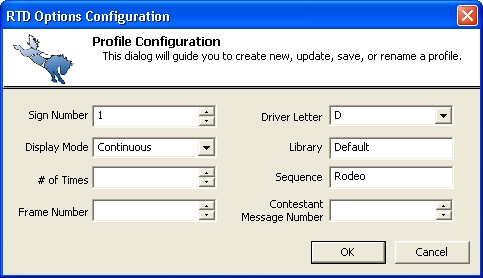

  2. In the RTD Options Configuration window, adjust the settings as follows:
  • Sign Number = sign number of DMP-8000 sign on which content will be played (view Edit Configuration Settings tab of VNET Control Panel)
  • Display Mode = always set to Continuous
  • # of Times = manually set to "0"
  • Frame Number = ensure this field is blank
  • Drive Letter = does not need to be specified
  • Library = location of sequences, typically "C:\ProgramData\DAKTRONICS\VNET4\Content"
  • Sequence = specific sequence to play
  • Contestant Message Number = if the sequence is for a contestant message, specify the message number to display (1-99)




Notes:

  • Only the "002-Start Sequence" command is supported, so Library and Sequence names are limited to 8 characters in length.
  • When the Run Performance tab is selected, the "003-Select Frame" command is still sent with a frame number of "1", but the DMP-8000 ignores this command.
  • For more information about DakStats Rodeo, refer the the Installation & Operation Manual (ED-14946).
