BB-314 TOD displays in 24 hour format but is set to 12 hour format

Potential Symptoms

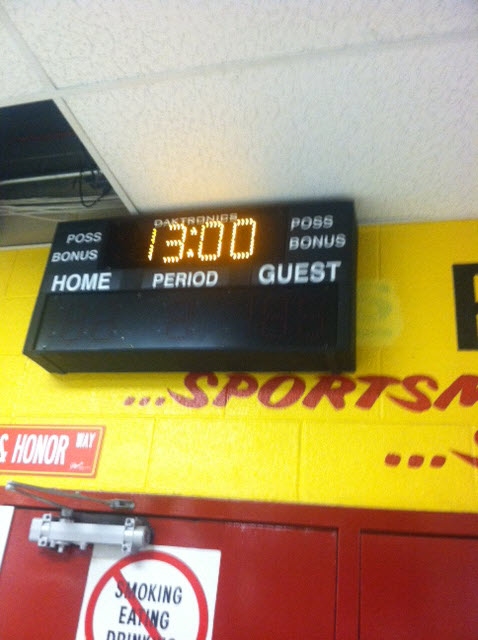

Time of day on BB-314 displays in 24 hour format but is set for 12 hour

Environment

  • Signal to BB-314 from All Sport disconnected
  • All Sport 5500 using code 1101 - Firmware 1.1.0
  • BB-314 with W12 jumper(TOD) set on driver
  • 0P-1388-0104 w/ firmware version 1.4 or less

Cause

The firmware on the driver swaps the two time formats.  12 hour format actually displays as 24 hr format and vice versa.

Resolution

Update driver firmware to ED-13401 Version 1.5 or greater.

For Temporary Operation

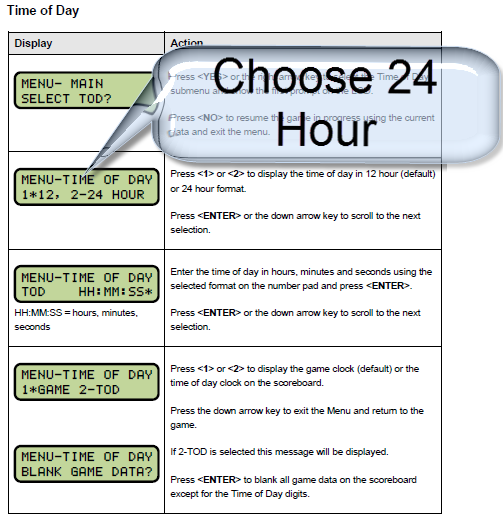

During the TOD configuration using the All Sport console choose 24 hr format.



KB ID: DD2214673
