How to integrate DakStats and All Sport data onto a Venus 1500 V3 controlled SSL display

Potential Symptoms

How do you integrate DakStats and All Sport data onto a Venus 1500 V3 controlled SSL display?

Environment

  • SSL
  • VLink 1500
  • DakStats
  • DSTI
  • V1500RT
  • Venus 1500 V3
  • All Sport 5010
  • Lantronix Box

Resolution

  1. Install DSTI with DSI file ER-1818360 (Contact Daktronics to obtain file if it isn't listed in the DSTI Document location).
  2. Install desired DakStats program.
  3. When creating content in Message Studio either:
    A) Manually offset ONLY DakStats RTD items by 5000 in the Content Studio field properties.
    B) Setup V1500RT Input #2 for DSxx.SCRB on UDP 3002 and use Input # 2 when creating DakStats RTD sequences. Where xx in DSxx is replaced with the appropriate sport, example: BB=basketball; VB=volleyball.

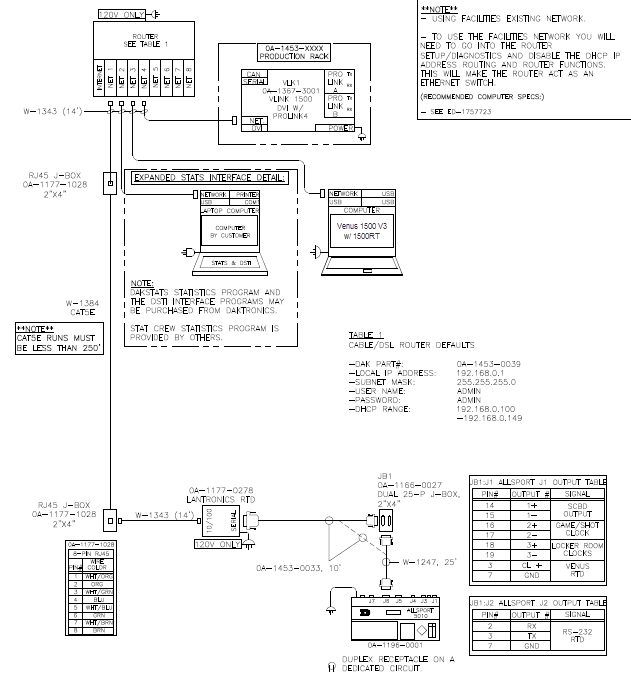

    • Connect the Lantronix box in line according to the following drawing:

    *The Lantronix box may need to be configured for a specific IP address.  Contact Daktronics for assistance.

    KB ID: DD2179547
