RTOP: How do I change the programming option?
Potential Symptoms
How do I change the programming option for RTOPs
Environment
Resolution
Download TeraTerm from the Internet ensuring that the version is at least 4.71 or higher.
Save the proper configuration files from DakFiles to the C:\ProgramFiles\TeraTerm folder.
(Right click and save the needed files below)
-ED16373.txt (Large Poly Tops)
-ED17778.txt (Small Poly Tops)
-ED17779.txt (Metal Tops)
-teraterm_rtop_field_script.ttl

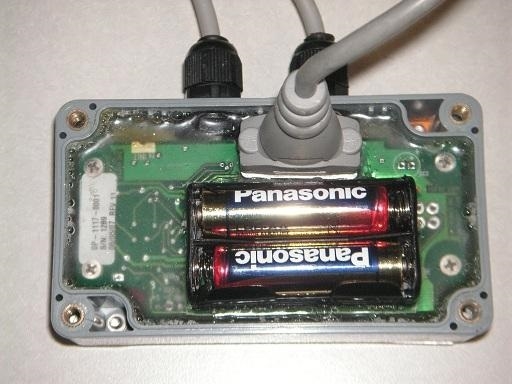

Connect Serial cable to RTOP control box.
Start TeraTerm, and configure the serial connection 9600 baud.
Select Control > Macro, and browse to the script file and open it.
The script file will ask you to select:
- for Small
- for Large
- for Metal
KB ID: DD2155637
