Where is loopback found in Venus 1500 version 1

Potential Symptoms

  • Where is loopback found in Venus 1500 version 1?
  • How do I perform a loopback test in Venus 1500 V1?

Environment

Venus 1500 V1 software (latest V1.81)

Resolution

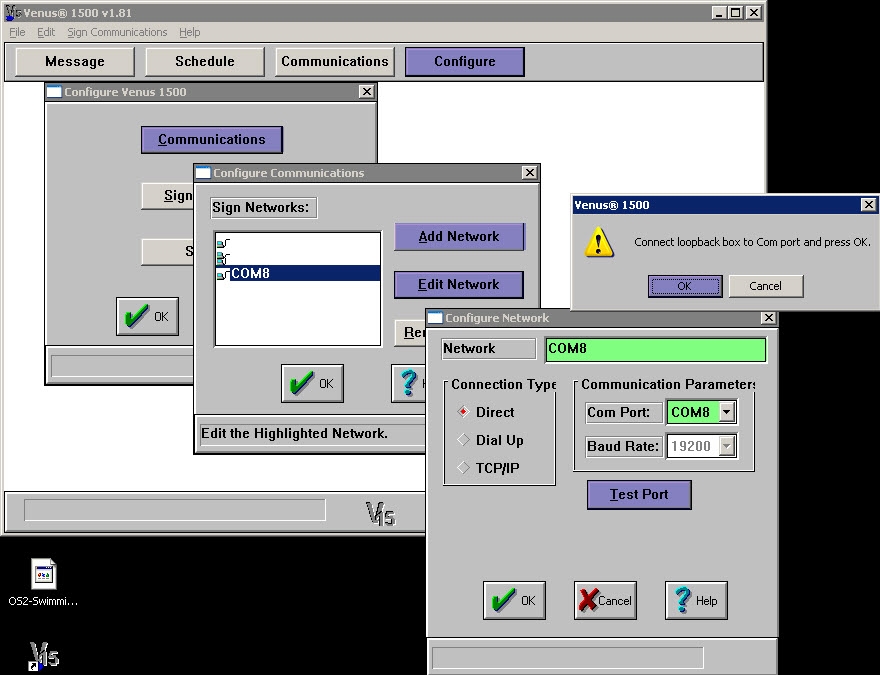

  1. Click Configure.
  2. Click Communications.
  3. Select either Edit or Add Network.
  4. Verify connection type is set to "Direct."
  5. Select the appropriate Com Port from the drop down under "Communication Parameter."
  6. Click the Test Port button.
  7. Click OK once the loopback is in place:
  8. If the loopback passes, the following message will appear
  9. :
  10. If the loopback fails, then the following will appear:

KB ID: DD2005933
