Device Configuration Platform Power Management User Experience Updates

Topic

The Device Configuration Platform now includes an updated Power Management interface that simplifies the configuration of power outputs and hibernate schedules while providing improved visibility into device power status.

The redesign introduces:

  • A modernized Power Management configuration panel
  • Simplified scheduled hibernate management
  • Improved output and manager configuration controls
  • A new Device Power Status dashboard tile
  • User interface consistency with the Displays application

Environment

DMP-8000

Steps

What's New

Redesigned Power Management Configuration

The Power Management configuration experience has been updated with a streamlined slide-out panel that consolidates all power management settings into a single interface.

Administrators can:

  • Configure power managers
  • Select managed outputs
  • Set power delays for managers and outputs
  • Configure manual or scheduled operating modes
  • Review all power management settings from one location

Note: Manual power state triggering is not available in the new configuration interface. Users can continue to manually change power states through existing controls available elsewhere in the platform, such as the Displays application and legacy management interfaces.

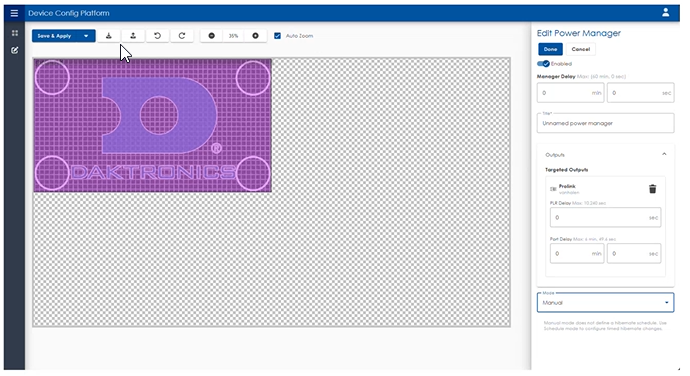

Figure 1. Power Management Configuration Slide-Out





Scheduled Mode Enhancements

The Scheduled Mode interface has been redesigned to make schedule creation and management more intuitive.

Creating Schedule Entries

To create a schedule:

  1. Select one or more days of the week.
  2. Choose the desired time.
  3. Select the power action (Hibernate On or Off).
  4. Select Add to Schedule.

This workflow allows a single entry to be applied across multiple days, reducing repetitive configuration.

Managing Existing Entries

The Scheduled List provides a consolidated view of all configured schedule entries.

Users can:

  • View scheduled actions by day
  • Modify scheduled times directly from the list
  • Toggle hibernate states
  • Delete schedule entries using the trash icon

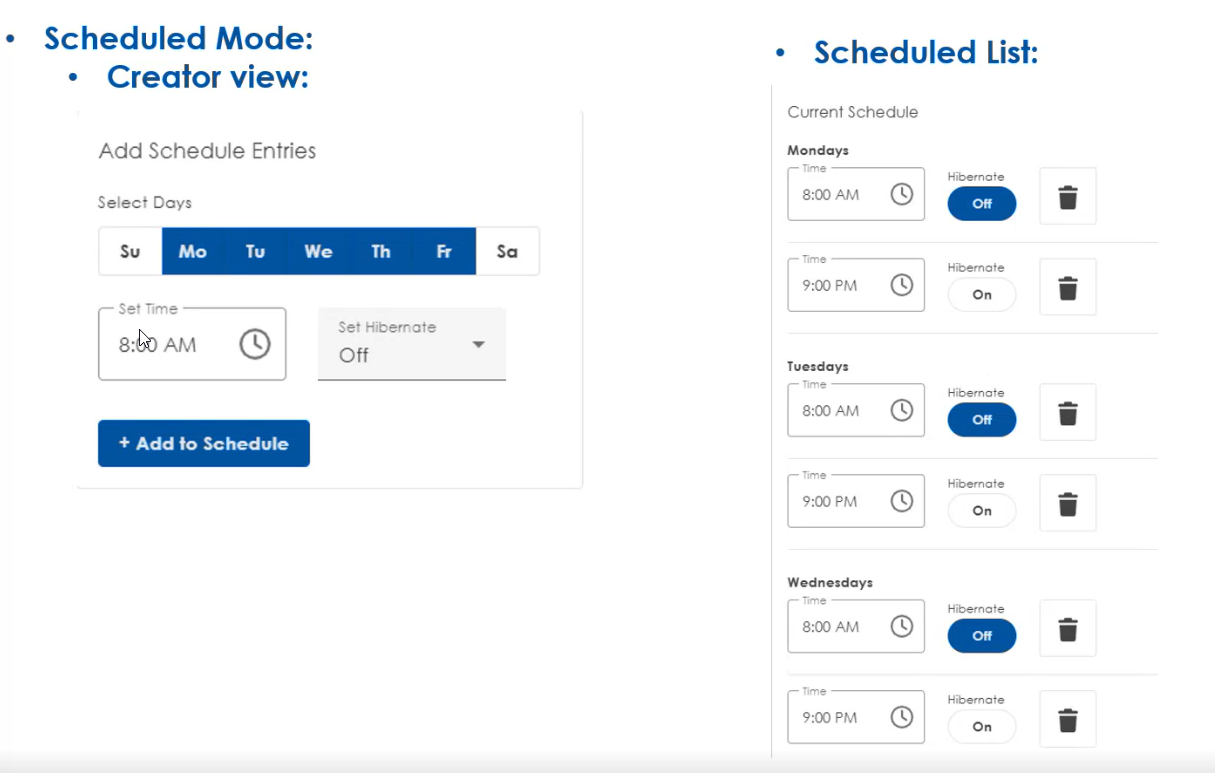

Figure 2. Scheduled Mode and Scheduled List





Device Power Status Dashboard Tile

A new Device Power Status tile has been added to the dashboard to provide at-a-glance visibility into the power state of devices.

The tile helps operators quickly determine whether devices are operating as expected and identify conditions that may require troubleshooting.

Supported Status Indicators

Status

Description

All On

All managed outputs are powered on.

Partial On

Some managed outputs are powered on while others are off.

All Off

All managed outputs are powered off.

In Progress

A power state transition is currently occurring.

Unconfigured

No power managers are configured for the device.

Error

The platform detected an issue determining the power state.

Unknown State

Power status could not be reliably determined.

Troubleshooting Visibility

The tile provides immediate awareness of:

  • Configuration gaps
  • Communication issues
  • Power state synchronization problems
  • Devices currently transitioning between states

This allows administrators to identify and investigate power-related issues more efficiently.

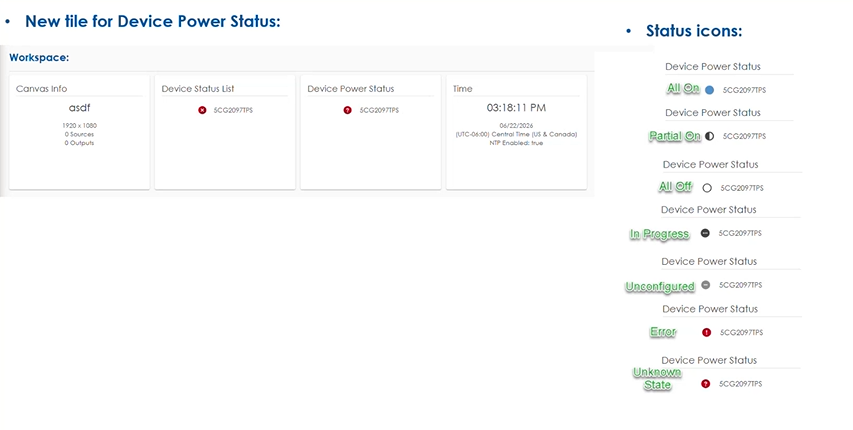

Figure 3. Device Power Status Dashboard Tile



Benefits

The updated Power Management experience provides:

  • Faster configuration of power management settings
  • Simplified schedule creation and maintenance
  • Improved visibility into device power states
  • Consistent user experience across platform applications
  • Easier identification of power-related issues



Key Takeaways

  • Power Management settings are now configured through a redesigned slide-out interface.
  • Scheduled hibernate entries can be created by selecting days, times, and actions in a single workflow.
  • Existing schedule entries can be edited or deleted directly from the Scheduled List.
  • The new Device Power Status tile provides real-time visibility into device power conditions.
  • The interface aligns with the Displays application for a more consistent user experience.
