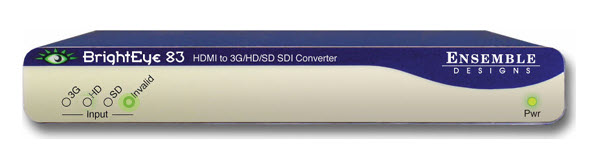

BrightEye 83‑H – INVALID Indicator Displayed
Potential Symptoms
• INVALID light illuminated on front panel
• No video output on display
• Intermittent or inconsistent video behavior
Environment
BrightEye 83‑H connected between HDMI source and SDI processor
Cause
The INVALID indicator means a signal is present but cannot be processed. Possible causes include:
• HDCP-protected content
• Unsupported resolution (non-broadcast format)
• Unsupported refresh rate
Resolution
1. Verify source device resolution:
○ Confirm output is a supported format (e.g., 720p, 1080p)
○ Adjust resolution if necessary
2. Verify refresh rate:
○ Ensure signal matches standard broadcast rates
3. Determine content type:
○ Ask if content includes streaming or protected media
4. If protected content is being used:
○ Confirm whether BrightEye licensing has been completed
○ If not, direct customer to licensing process
5. Verify cabling and signal path:
○ Confirm HDMI input is connected before powering device
○ Confirm SDI output connections are secure
For Temporary Operation
• Switch to non-protected content (e.g., PowerPoint)
• Adjust source resolution to a supported format
KB ID: 000032154
DISCLAIMER: Use of this content may void the equipment warranty, please read the disclaimer prior to performing any service of the equipment.
DAKTRONICS DOES NOT PROMISE THAT THE CONTENT PROVIDED HEREIN IS ERROR-FREE OR THAT ANY DEFECTS WILL BE CORRECTED, OR THAT YOUR USE OF THE CONTENT WILL PROVIDE SPECIFIC RESULTS. THE CONTENT IS DELIVERED ON AN "AS-IS" AND "AS-AVAILABLE" BASIS. ALL INFORMATION PROVIDED IN THIS ARTICLE IS SUBJECT TO CHANGE WITHOUT NOTICE. DAKTRONICS DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTIES OF ACCURACY, NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. DAKTRONICS DISCLAIMS ANY AND ALL LIABILITY FOR THE ACTS, OMISSIONS AND CONDUCT OF YOU OR ANY THIRD PARTIES IN CONNECTION WITH OR RELATED TO YOUR USE OF THE CONTENT. ADJUSTMENT, REPAIR, OR SERVICE OF THE EQUIPMENT BY ANYONE OTHER THAN DAKTRONICS OR ITS AUTHORIZED REPAIR AGENTS MAY VOID THE EQUIPMENT WARRANTY. YOU ASSUME TOTAL RESPONSIBILITY FOR YOUR USE OF THE CONTENT AND ANY LINKED CONTENT. YOUR SOLE REMEDY AGAINST DAKTRONICS FOR DISSATISFACTION WITH THE CONTENT IS TO STOP USING THE CONTENT. THIS LIMITATION OF RELIEF IS A PART OF THE BARGAIN BETWEEN THE PARTIES.
The above disclaimer applies to any property damage, equipment failure, liability, infringement, or personal injury claim arising out of or in any way related to your use or application of the content, whether such claim is for breach of contract, tort, negligence or any other cause of action.
