All Sport Pro: How Do I Update All Sport Pro via Appliances in Venus Control Suite

Topic

The article outlines the process for updating the All Sport Pro via the Appliances menu in Displays app in Venus Control Suite.

Legacy method: All Sport Pro: How Do I Update a Series 2 Interface Box Via Device Updater

Environment

  • Product:
  • Component:  Device Updater
  • Control System: All Sport Pro Series 3

Steps

Use the arrows to open and collapse each section.

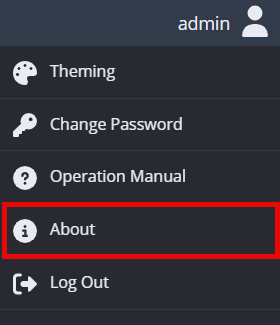

  1. Open All Sport Pro and go to the User menu in the upper-right corner, then select About.



  1. If you still need to associate a device, select Updater Client to find your Device ID and copy it
  2. Choose Venus Appliance to open the Appliances menu in your Displays app in Venus Control Suite

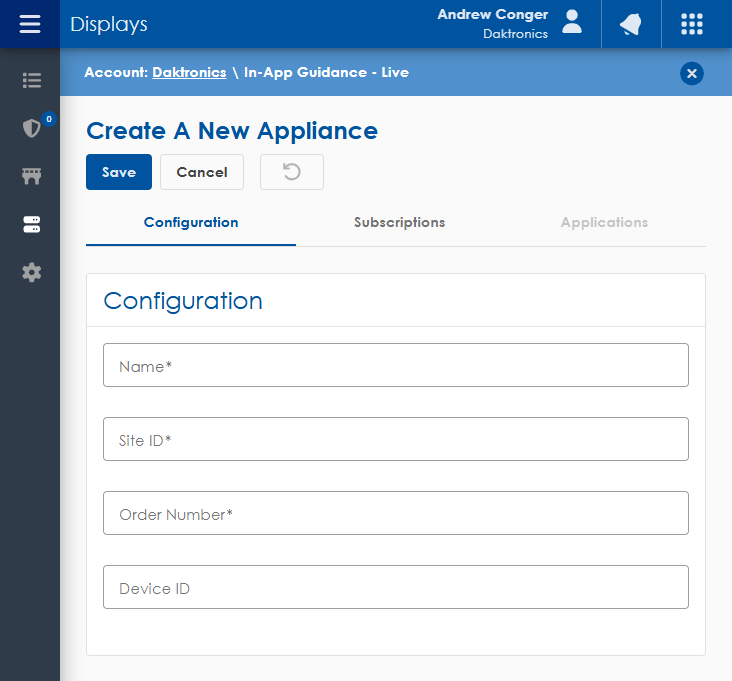

    1. If you need to setup an appliance click Add New
      1. Fill out the empty fields and paste the Device ID you copied in the Device ID section
      2. Click Save

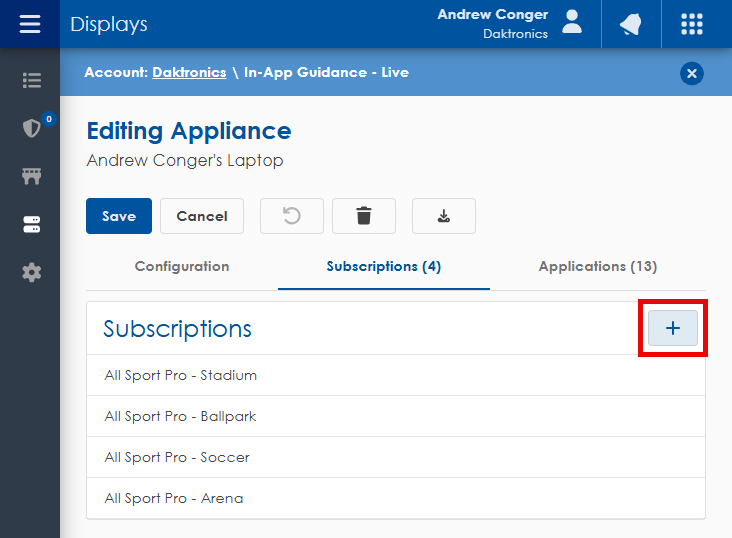

      3. Navigate to Subscriptions and apply All Sport Pro by clicking the + icon



    1. Click on your Appliance that needs updating
  2. Navigate to the Applications tab
  3. Here you can see your Applications, their current version, and what versions are available

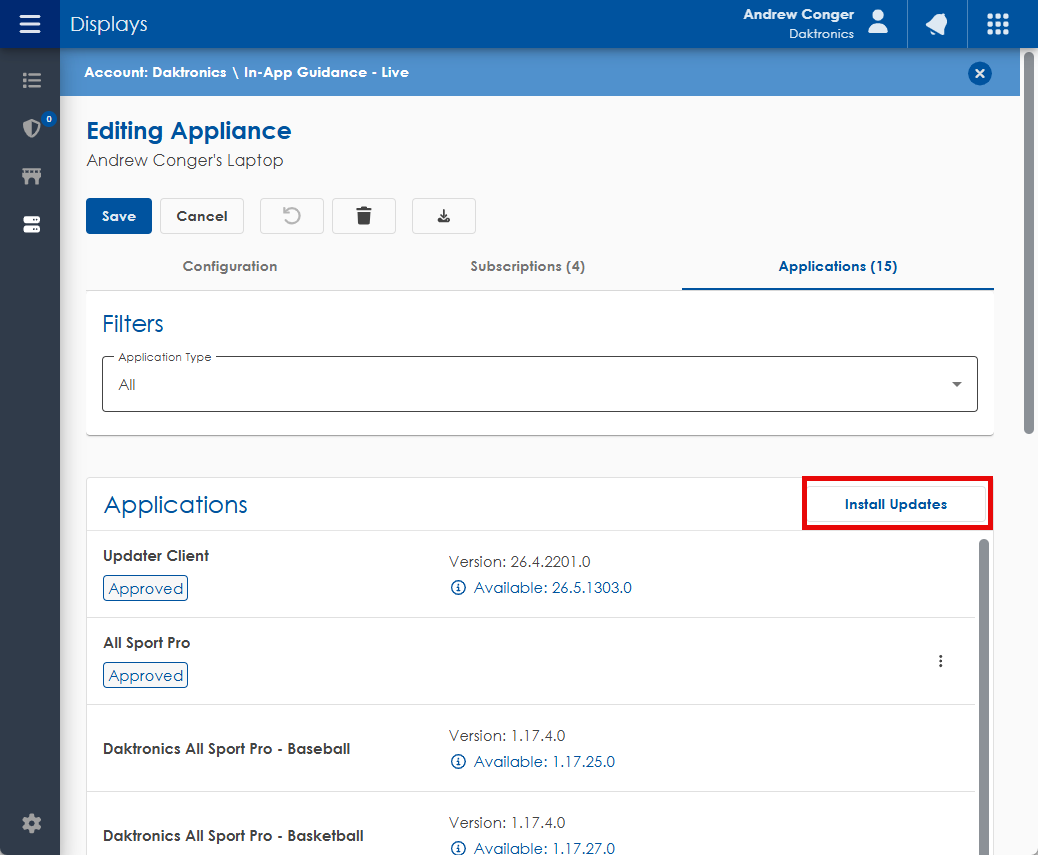

  4. Click Install Updates



  1. At the bottom of the screen you can see the Appliance Update History which shows all updates that have been executed to your current appliance





KB ID: 000032011
