All Sport Lite App: How to update All Sport MX-1 Bluetooth & Firmware, Scoreboard Driver, TNMCs & Electronic Captions Firmware?

Topic

  • All Sport Lite App: How to update All Sport MX-1 Bluetooth & Firmware, Scoreboard Driver, TNMCs & Electronic Captions Firmware.

Environment

  • Product: All Sport Lite App
  • Components:
  • Control System: Scoreboard with All Sport MX-1

Steps

Update Process

  • When a new version is released, use the built-in firmware update feature of the All Sport Lite app.
  • How to update.

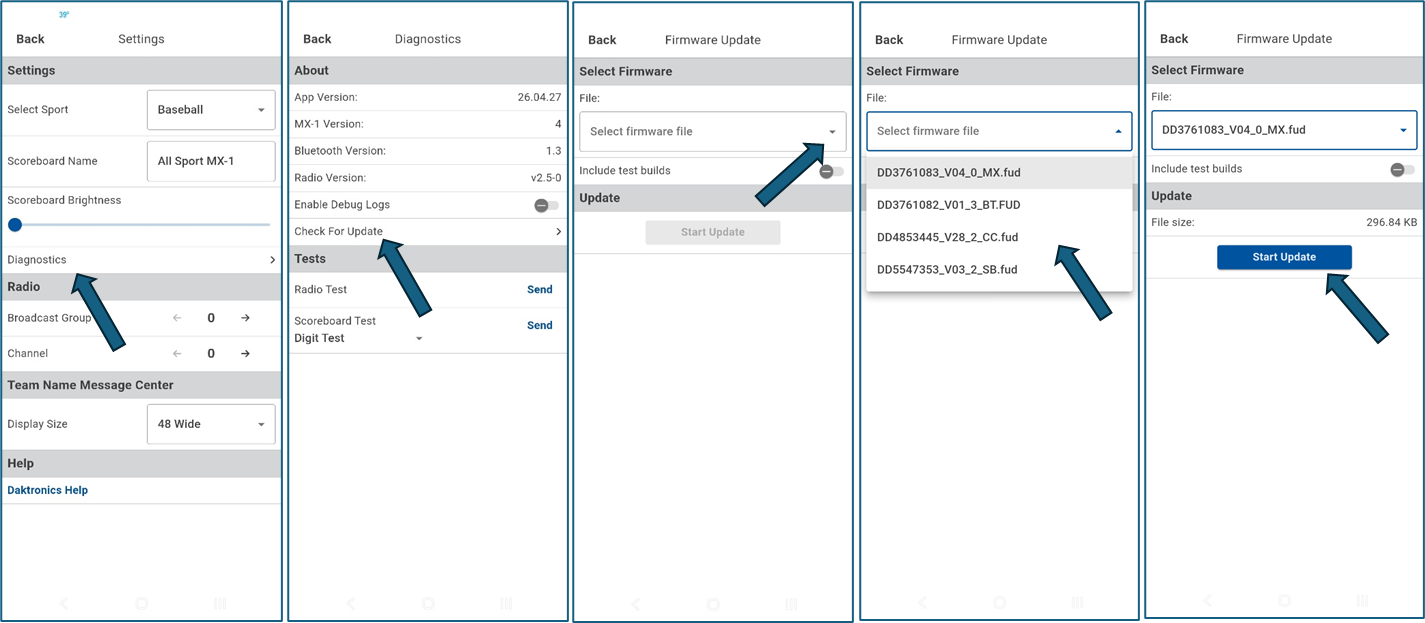

    • Navigate to the Settings page in the All Sport Lite app.
    • Select “Diagnostics”.
    • Select “Check for Updates”.
    • In the “File: Select firmware file” pull-down select the desired update file.
      • Note: All Sport MX-1 Bluetooth update should be performed first, see below "Complete System Update Order - Visual Flow".

Device

Category

Support

File Name

ALL SPORT MX-1 FIRMWARE

MX

All

DD37610836_ Vxx_y _MX.fud

ALL SPORT MX-1 BLUETOOTH

BT

All

DD3761082_ Vxx_y _BT.fud

SCOREBOARD DRIVER

SB

Gen 2 Scoreboard Driver Only (built after Nov 2025)*

DD5547353_ Vxx_y _SB.fud

OUTDOOR ELECTRONIC CAPTIONS/TEAM NAMES

CC

5000 Series Only*

DD4853445_Vxx_y_CC.fud

Note: xx = major version number, y = Minor Version number.  Example: “DD37610836_V04_0_MX.fud”

    • Select the “Start Update” button to begin the file download.

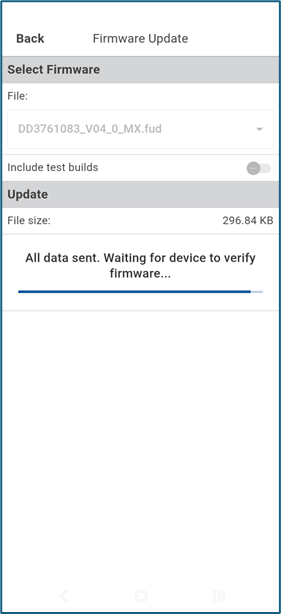

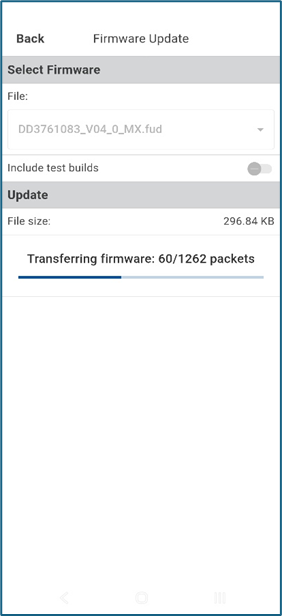

    • The progress bar will indicate the download process as the file transfers from the mobile device to the All Sport MX-1 device.

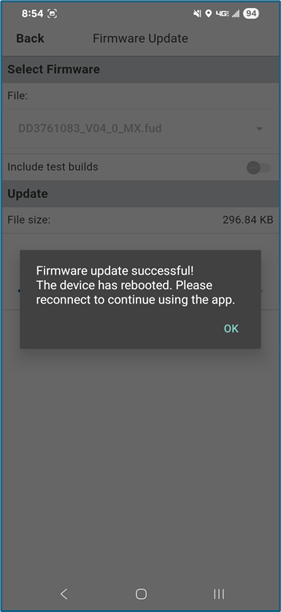

    • Once the transfer is complete the All Sport Lite App will report success and return the user to the Device Connection page while the All Sport MX-1 device updates itself and restarts.

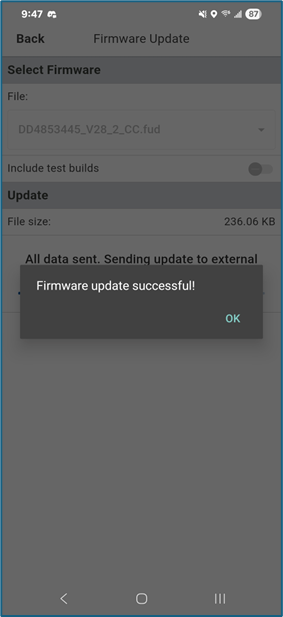

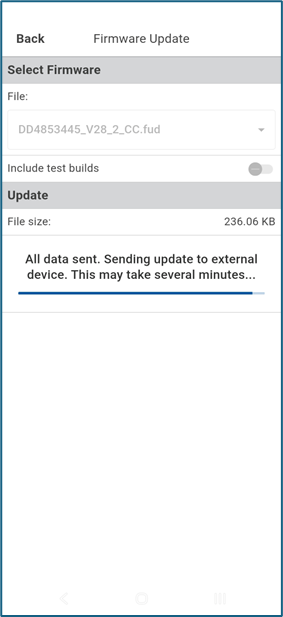

    • For Scoreboard and Electronic Caption displays, the file will now transfer from the MX-1 to those external devices.  This process may take several minutes.  The scoreboards undergoing the update will display a Status on the?
    • Reconnect to the All Sport MX-1 to resume normal activity.
All Sport Lite Firmware Update Process - Visual Flow
  • OR
Scoreboard Driver - What is Supported?
  • Scoreboards produced as of November 2025 or newer are supported.

Visual Confirmation of Support:

  • If the scoreboard has a clock section, on start-up (with no controller connected/powered) the digits will display its current Address (“AYYY”) and firmware version (“rXX”).
  • Only scoreboards with version 3.0 (“r30”) or greater support the MX-1 firmware update feature.
Team Name Message Center/Configurable Electronic Caption – What is Supported?

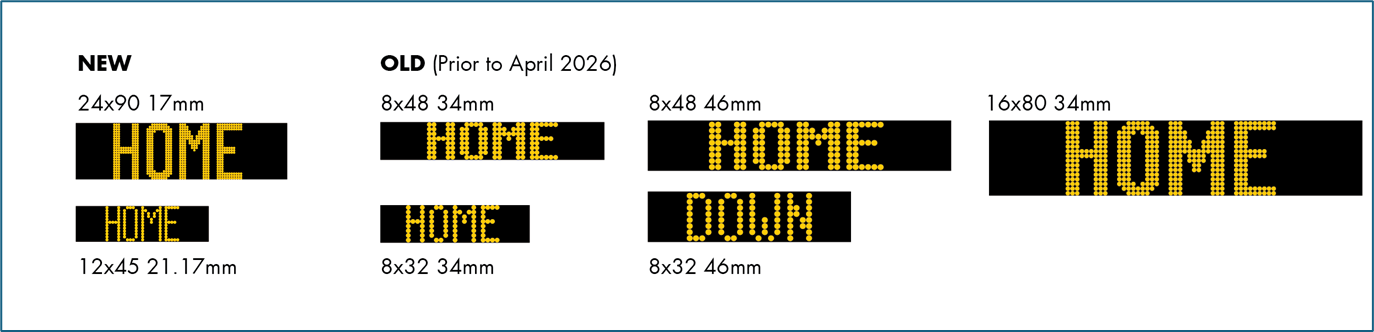

  • Firmware update support for the smart modules used in TNMC and Electronic Captions is limited to the newer 5000 series modules used in outdoor scoreboards produced after April 2026.  Visually, these electronic captions have higher resolution than prior style of display.   See the image below for a representation of the new vs the old-style displays.
  • Note: TNMC update files are transferred through the scoreboard driver.  Scoreboard driver firmware vers 3.2 and newer supports this transfer process.  If the scoreboard driver firmware version is unknown or older than version 3.2 the scoreboard driver firmware must be updated before attempting updates for your TNMC electronics captions.

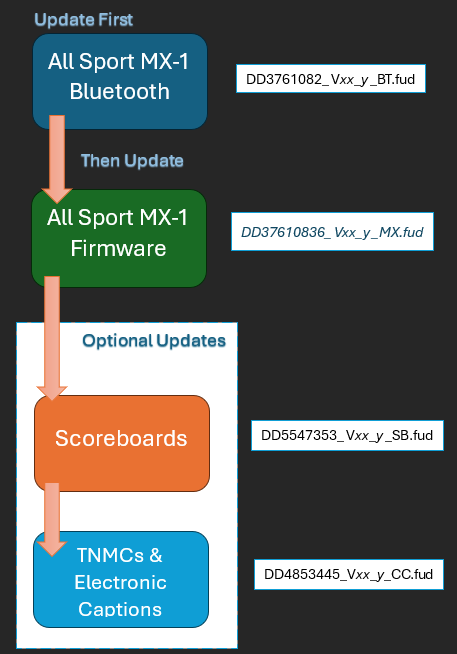

Complete System Update Order - Visual Flow

KB ID: 000031962
