All Sport Pro: How to Use the Gen VI Radio Diagnostics Features on an All Sport Pro Web Interface

Topic

All Sport Pro: How to Use the Gen VI Radio Diagnostics Features on an All Sport Pro Web Interface

Environment

Product:

Components: Gen VI Radio Receivers

Control System: All Sport Pro



Steps

  1. Connect to the All Sport Pro Web interface
  2. Verify a scoreboard has been created and note what radio broadcast and channel settings.
  3. Open or Start a game

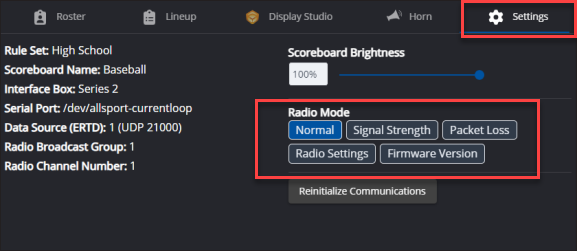

  4. Once a game has been opened, locate and click on the Settings tab near the middle of the page.
    1. This can also be Identified by the gear icon.
  5. Select the desired radio test from the list of available options.

Radio Tests and Functions

Radio tests will display their results on your scoreboard game clock digits.

  • Signal Strength
    • Scoreboard with 2 clock digits
      • Shows only the signal strength between the All Sport and the radio receiver. Range is from 00 (weakest) to 99 (strongest).
    • Scoreboard with 4 clock digits
      • Shows the signal strength on the two left digits.
      • Shows the packets dropped on the two right digits.
      • Example: 99:00 would mean the signal strength is 99 and there are no dropped packets.
    • Scoreboard with no clock digits and A1 driver not using outputs J1-4.
      • Shows the signal strength on the A2 drivers J1 and J2 outputs.
      • Shows the packets dropped on the A2 drivers J3 and J4 outputs.
  • Packet Loss
    • Scoreboard with 2 clock digits
      • Shows only the packets dropped between the All Sport and the radio receiver.
    • Scoreboard with 4 clock digits
      • Shows the packets dropped on the two left digits.
      • Shows the signal strength on the two right digits.
      • Example: 00:99 would mean the signal strength is 99 and there are no dropped packets.
  • Radio Settings
      • Shows current Broadcast and Channel setting of scoreboard radio receiver and All Sport.
      • Game clock will show the current Broadcast and Channel setting of scoreboard radio receiver.
      • All Sport LCD will show the current Broadcast and Channel setting of the All sport.
  • Firmware Version
      • Shows current Radio firmware version of All Sport and scoreboard radio receiver.
      • All Sport LCD will show current console radio firmware.
      • Game clock will show current scoreboard radio receiver firmware.

KB ID: 000031360
