All Sport Pro: How to Configure the Tissot Interface?

Topic

Configure All Sport Pro UX to communicate with Tissot scoring systems, create a scoreboard and game, and verify connection within the user interface.

Environment

Product Family: All Sport Pro
Product: All Sport Pro Series 2.5 Tissot (applies to NBA/WNBA venues)
Component: Device Configuration, Scoreboards, Games
Control System: All Sport Pro Series 2.5 – Local Interface with Tissot Timing System

Steps

Overview and Purpose

The All Sport Pro Tissot Interface translates Tissot timing and scoring data to Daktronics protocols:

  • ERTD (Enhanced Real-Time Data): Protocol used for video displays
  • MDP (Multi-Drop Protocol): Protocol used for fixed-digit displays and locker room clocks

This integration replaces legacy All Sport 5000 systems, providing backward compatibility, remote management, and real-time diagnostics.



All Sport Pro Login
  1. Open a web browser and go to http://allsport.local:5000.
  2. Log in using your All Sport Pro credentials.
  3. Once logged in, the All Sport Pro UX (user interface) will load.



Change Hostname

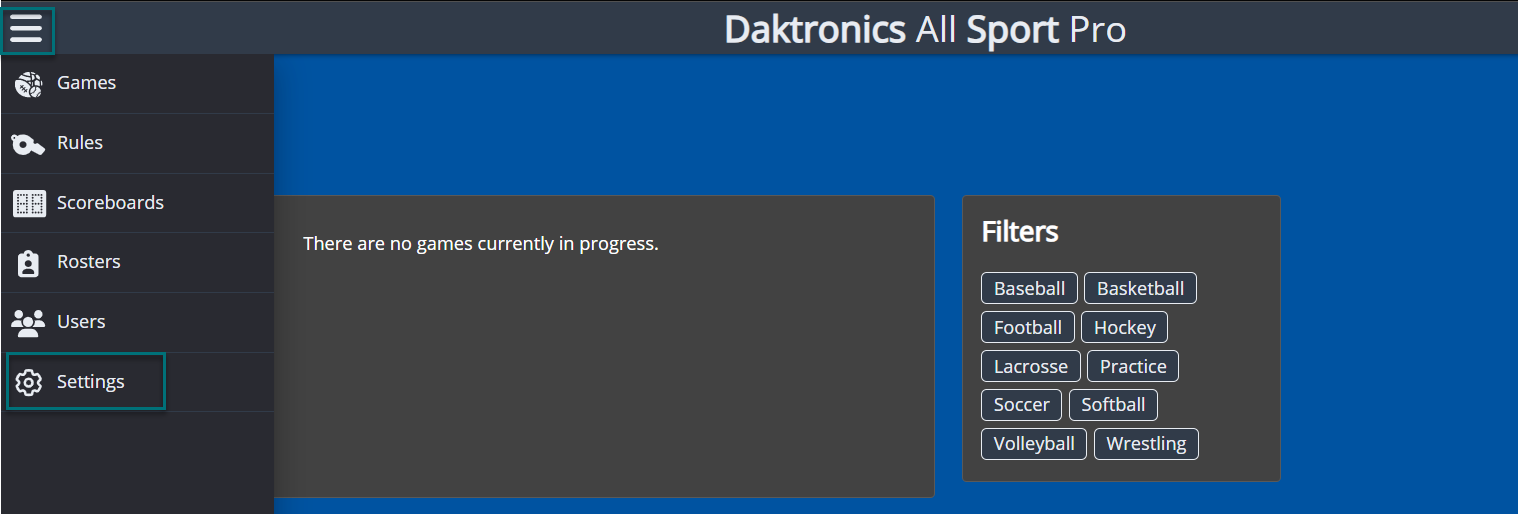

  1. In the All Sport Pro UX, go to the Settings page.
    1. Locate the Settings page in the left-hand menu

  1. Select Device Configuration.
  2. Expand the Networking section.

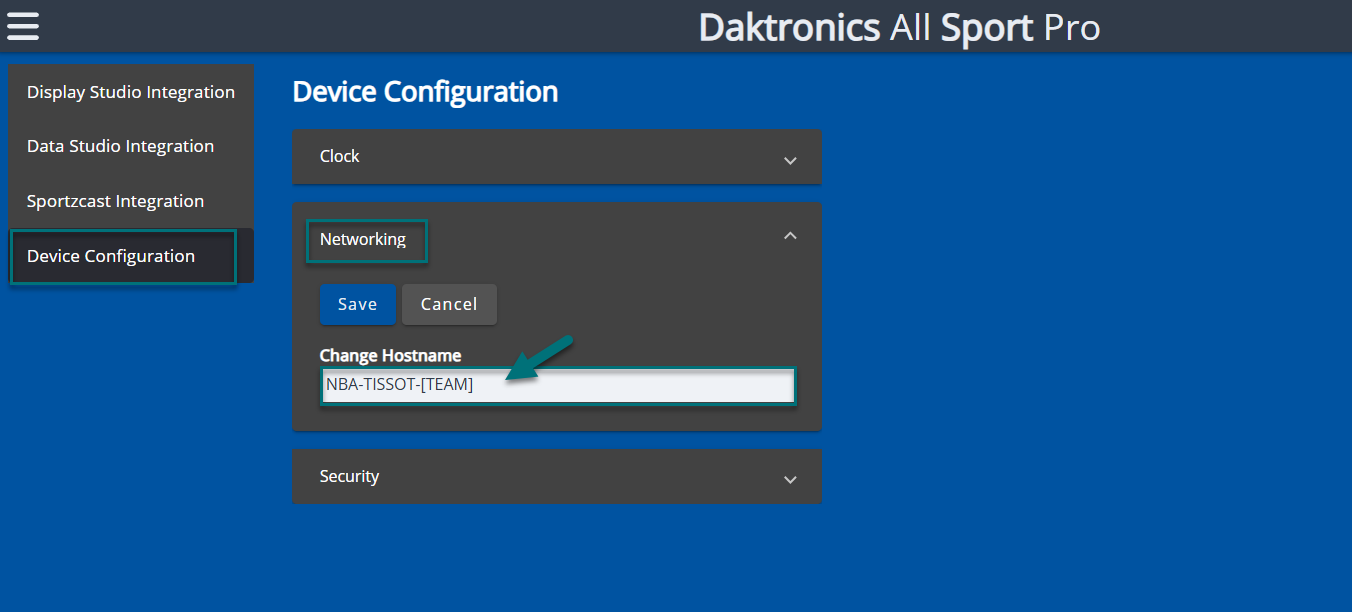

  3. Type the new hostname (example: NBA-TISSOT-[TEAM]) and click Save.

  1. The system will automatically reboot to apply the changes.

💡Note: Use the NBA-approved naming convention if applicable (for example, NBA-BOS-01 for Boston Celtics).



Create Scoreboard

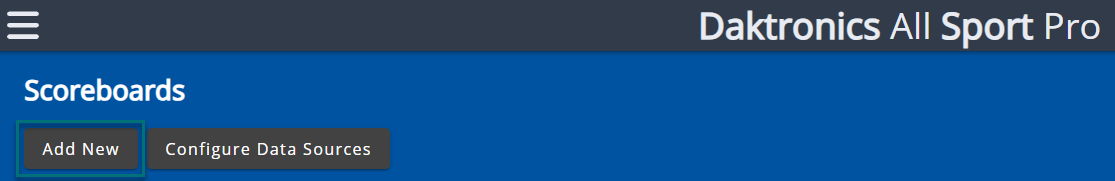

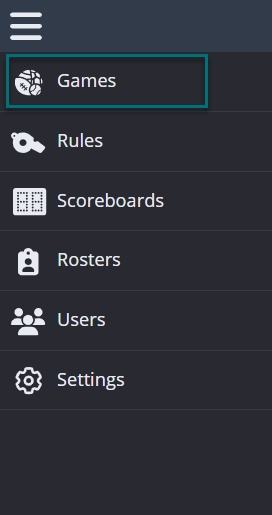

  1. Navigate to the Scoreboards page utilizing the left-hand menu.

  1. Click Add New.

  1. Enter a Scoreboard Name such as Tissot-Interface.
  2. Expand the Communications section if needed.

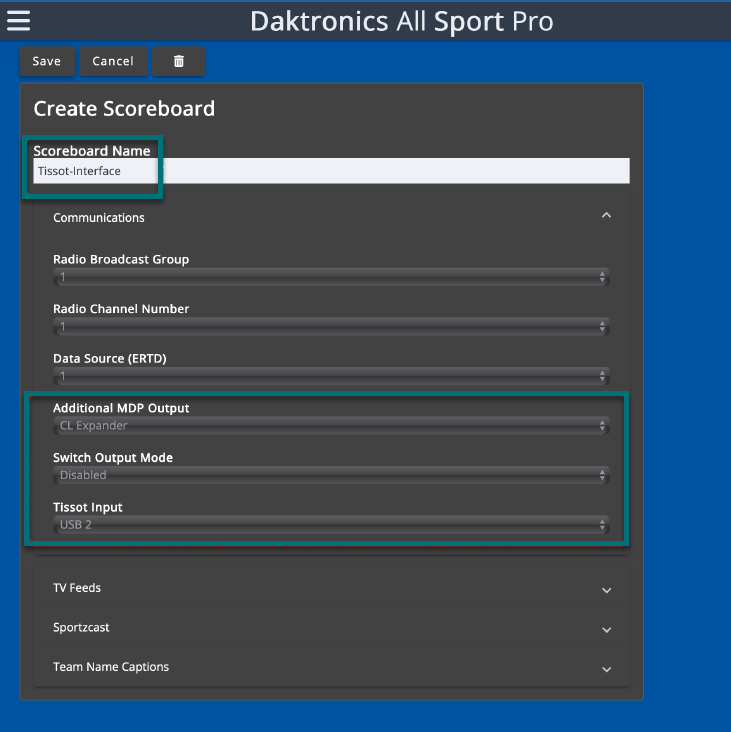

  3. Configure the following settings:
     - Radio Broadcast Group: 1 (default)
     - Radio Channel Number: 1 (default)
     - Data Source (ERTD): 1
     - Additional MDP Output: CL Expander
     - Switch Output Mode: Disabled
     - Tissot Input: USB 2



  1. Click Save to create the scoreboard.

    💡Tip: TV Feeds, Sportzcast, and Team Name Captions sections can remain collapsed with default settings.



    Create Game
    1. Navigate to the Games page in the left-hand menu.

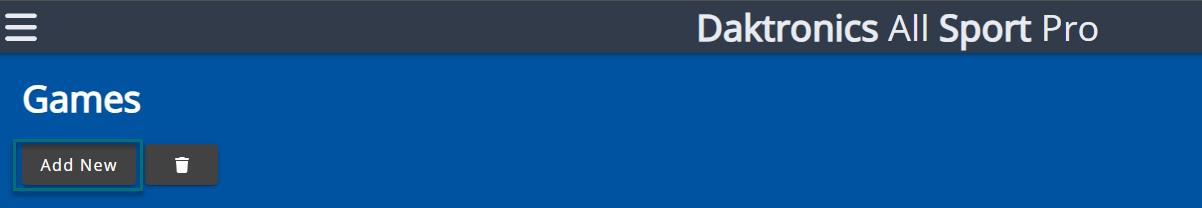

    1. Click Add New.

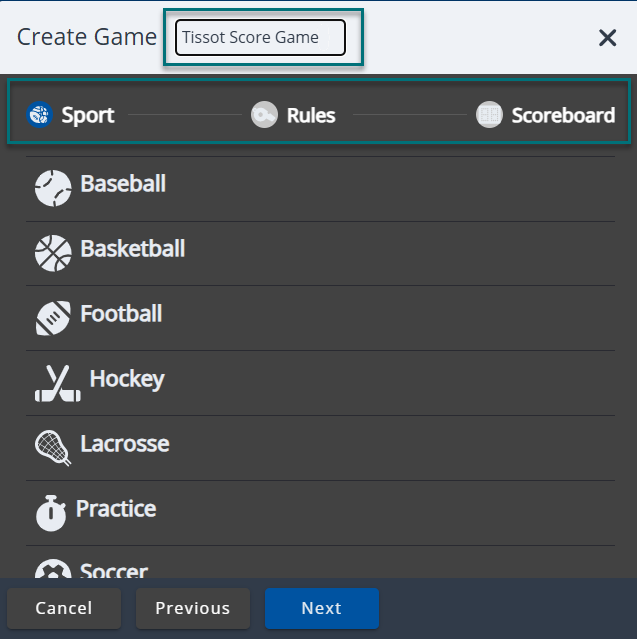

    1. In the Create Game dialog, configure:
       - Game Name: Tissot Score Game
       - Sport: Basketball
       - Rules: NBA
       - Scoreboard: Tissot-Interface (the one created in the previous step)

    1. Verify the configuration details:
       - Interface: Series 2
       - Data Source (ERTD): 1
       - Radio Broadcast Group / Channel: 1

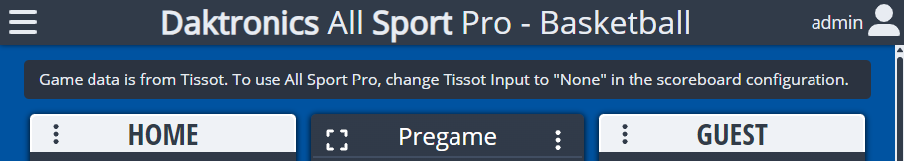

    2. Confirm that a banner appears at the top of the page stating "Game data is from Tissot"

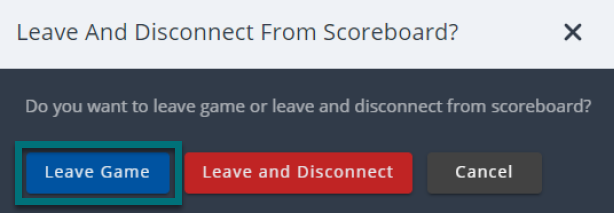

    1. This game must remain active. When leaving the game page, always select "Leave Game" to keep the game running.



    Verify Connection
    1. The integrated LCD on the All Sport Pro enclosure will display Tissot log activity.
    2. When connected properly, live Tissot timing and score data will populate on Daktronics systems.
    3. The LCD will initially report "WRN Tissot - No data received in the last 10 seconds. Blanking game and shot clocks".  It will continue to log this warning every 60 seconds until Tissot data is connected and flowing.
