How do I set presets and break warnings on the All Sport for NCAA Break Timers?

Topic

  • How do I set presets on the All Sport for NCAA Break Timers?
  • How do I set break warnings on the All Sport for NCAA Break Timers?

Environment

  • Product: Scoreboards
  • Components: TI-2104 Break Timers
  • Control System: All Sport 5100 with firmware version 4.1.6 or higher
  • Conferences: SEC or others

Steps

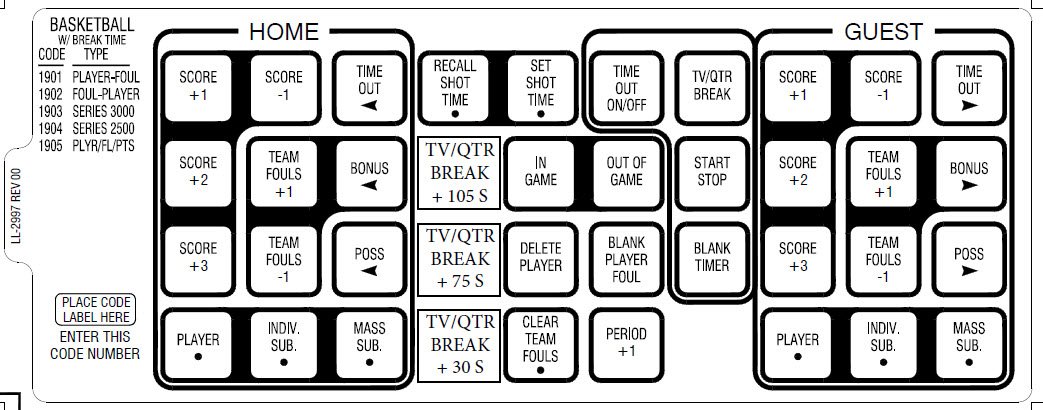

Insure the proper Insert is in place before proceeding:

Set Presets

  1. Turn on the All Sport 5100 console
  2. Put in the correct Code per the insert.
  3. Press <EDIT> followed by <TV/QTR BREAK> to display the current break time for editing.
  4. This will show you the Current Time. Do not change it right now. Press <Enter> one more time to access the presets. This will bring you to Preset 1.
  5. If the preset value is correct simply press <ENTER> to go to the next preset or if not correct type in the new time for Preset 1 and press <ENTER> to go to the next preset.
  6. Continue entering the values for up to 6 different break times. Pressing <ENTER> after the sixth break time will return to the main basketball operation screen.

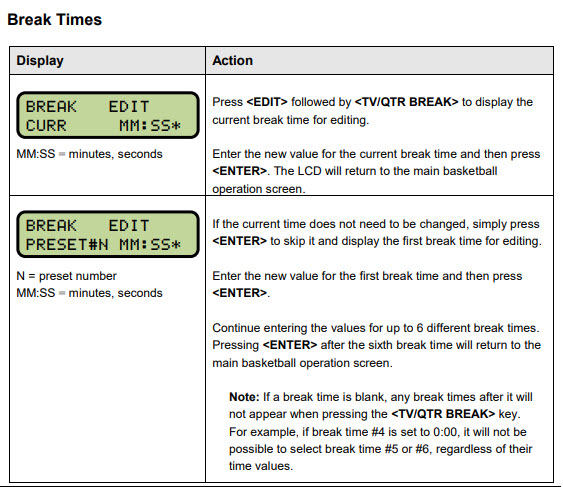

Excerpt from the Break Timers manual:





Set Break Warnings

  1. Turn on the All Sport 5100 console
  2. Put in the correct Code per the insert.
  3. On the Main Menu, press the down arrow key until you see EDIT SETTINGS? Press <YES> to select the Edit Settings submenu.
  4. Press the down arrow key until you see TIME OUTS- BREAK WARNING 1 MM:SS and set this first warning to 15 seconds, then press <ENTER>.

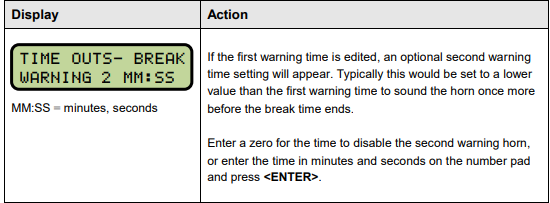

  5. Upon editing the first warning time, an optional second warning time will appear which should be set to 1 second, then press <ENTER>.
  6. Durations above can be adjusted based on conference rules. The examples above are for the SEC.

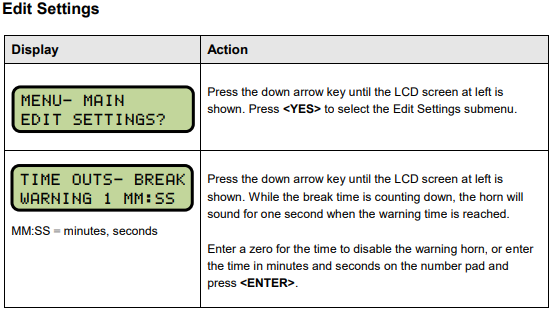

Excerpts from the Break Timers manual:



KB ID: 000031156
