How do I set presets on the All Sport for NBA Break Timers?

Topic

  • How do I set presets on the All Sport for NBA Break Timers?

Environment

  • Product: Scoreboards
  • Components: TI-2104 Break Timers
  • Control System: All Sport 5100 with firmware version 4.1.6 or higher

Steps

  1. Turn on the All Sport 5100 console
  2. Put in the correct Code (They are now 19XX code numbers so if the old code was 1101 it is now 1901, 1102 now 1902, etc)
  3. Press <EDIT> followed by <TV/QTR BREAK> to display the current break time for editing.
  4. This will show you the Current Time. Do not change it right now. Press <Enter> one more time to access the presets. This will bring you to Preset 1.
  5. If the preset value is correct simply press <ENTER> to go to the next preset or if not correct type in the new time for Preset 1 and press <ENTER> to go to the next preset.
  6. Continue entering the values for up to 6 different break times. Pressing <ENTER> after the sixth break time will return to the main basketball operation screen.

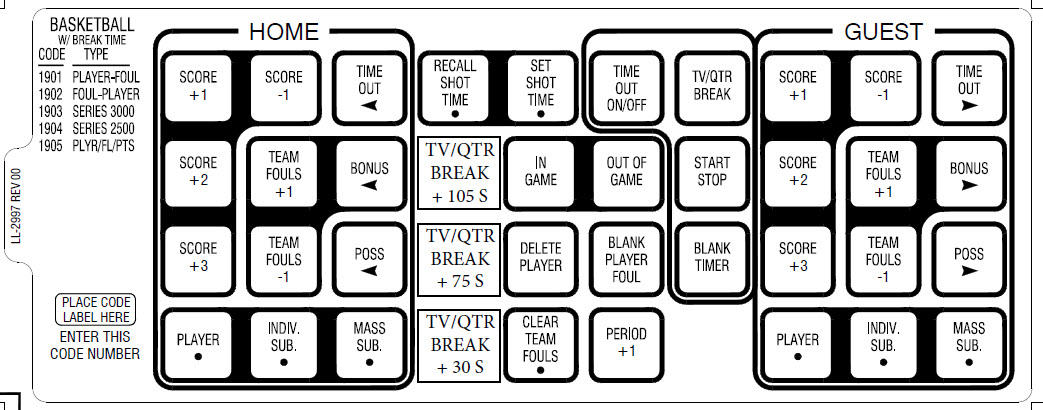

Picture of the Insert:

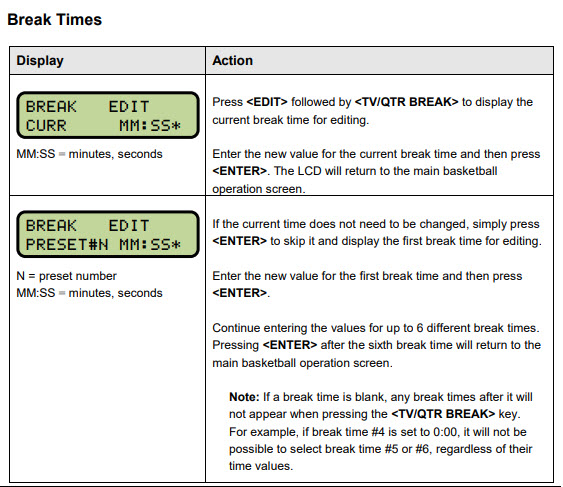

Excerpt from the Break Timers manual:


KB ID: 000031134
