T-Bar Control in Live Switch UI

Topic

Live Switch – Program Bus T-Bar Functionality

Environment

Live Switch UI – Version FY26.2 and later

Steps

Using the T-Bar

  1. Locate the T-Bar icon in the Program Bus section of the Live Switch UI.
  2. Click and drag the T-Bar to manually control transitions between Preview and Program.
  3. The T-Bar allows for smooth fades, wipes, and crossfades with manual speed control.



Additional Information:

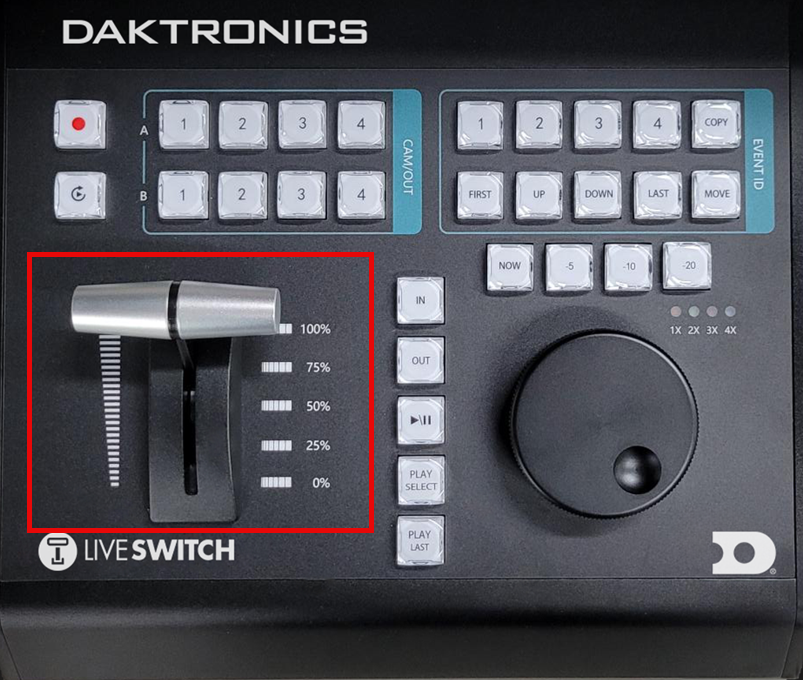

  • The UI T-Bar mimics the functionality of hardware switchers and provides manual control for operators.
  • The hardware switcher console is optional; some sites may use only the UI.
  • The T-Bar was added to enhance flexibility and operator control.



KB ID: 000031098
