Live Switch- Source Configuration

Topic

  • How do I add or edit camera sources in Live Switch?
  • How can I switch a source from SDI to NDI in Live Switch?

Environment

•    Live Switch software (DD4646673)
•    Connected cameras or NDI network feeds

Steps

Open the Sources Tab

1.    Launch Live Switch.
2.    Go to the top menu and select Edit > Configuration.
3.    Click the Sources tab.



Add a New Source

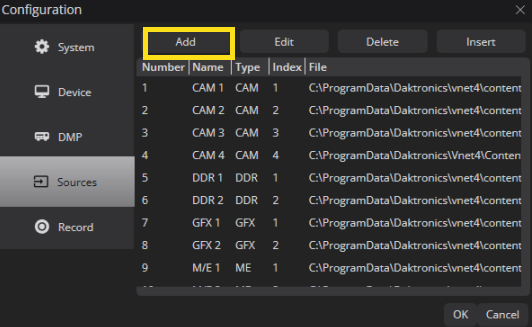

1.    Click Add to create a new source.
2.    Enter the source details:o

  • Name: (e.g., CAM5 or SponsorFeed)

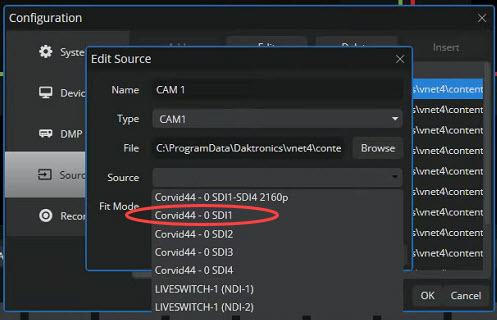

  • Type: Select SDI or NDI.
  • Connection Details: Specify SDI input port or NDI stream address.

3.    Click OK to save.



Edit an Existing Source

1.    Select the source you want to edit from the list.

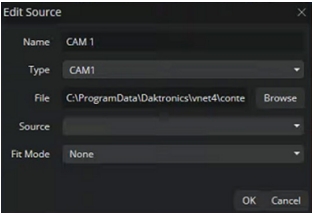

2.    Click Edit.
3.    Modify the name, type, or connection settings as needed.
4.    Click OK to save.



Delete a Source (If Needed)

1.    Select the source from the list.
2.    Click Delete.
3.    Confirm the deletion when prompted.



Verify in Main Interface

•    Confirm that the new or updated source appears as a selectable camera feed (CAM1–4 or additional inputs) in the main interface.

KB ID: 000030596
