Venus Control Suite Data Studio Basketball: How to Configure and Operate Basketball Data Feeds?

Topic

Configure and operate Data Studio Basketball to manage basketball game data feeds, configure media outputs, and schedule or replay game content using Venus Control Suite.

Environment

Product Family: Venus Live
Product: Data Studio Basketball
Component: Providers, Outputs, Dashboard
Control System: Venus Control Suite (VCS) Cloud Hosted

Steps

Access Data Studio Basketball

  1. Log in to Venus Control Suite Venus Accounts: How do I log in to Venus Control Suite?

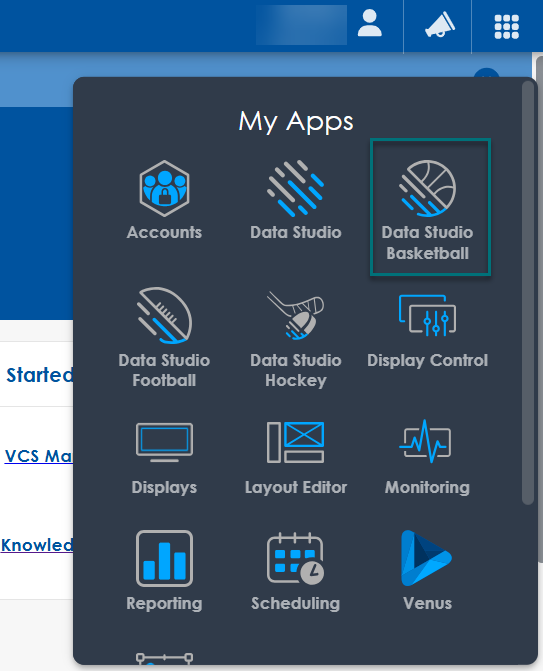

  2. Click Data Studio Basketball from the My Apps menu.





Create and Manage Providers

Providers are a collection of data distributed by unique organizations composed of games, stats, and replays. A Provider is required to use the software and will be prompted on first launch.

To Create a Provider:

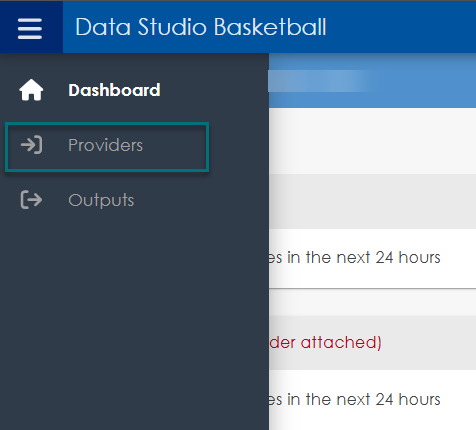

  1. Navigate to the Providers tab from the left-hand menu.

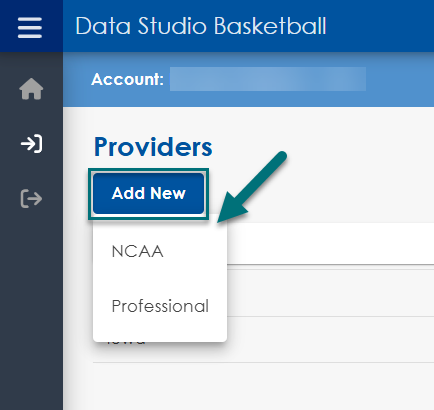

  1. Click Add New and select from drop-down.

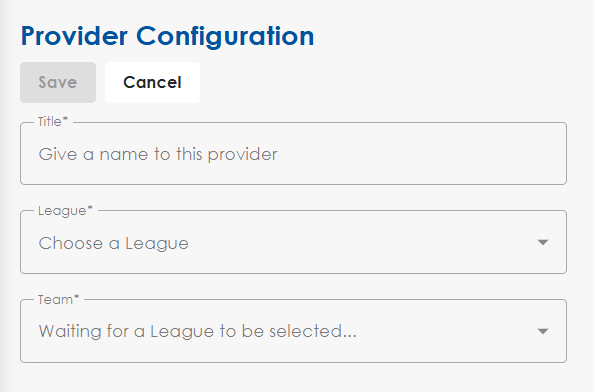

  1. Enter a Title for the provider.
  2. Select a League from the drop-down menu (e.g., NCAA, Professional).
  3. Choose a Team from the drop-down.
  4. Click Save.

To Edit a Provider:

  1. Select a Provider from the Providers tab.
  2. Make changes to Title, League or Team.
  3. Click Save.

To Delete a Provider:

  1. Select the Provider.
  2. Click the trash icon.

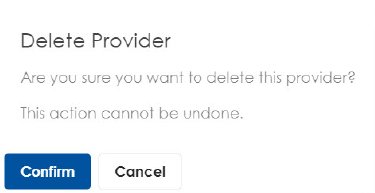

  3. Confirm deletion.


⚠️ Note: This process cannot be undone.

Create and Manage Outputs

Outputs are digital channels where media from Providers is scheduled and played.

To Create an Output:

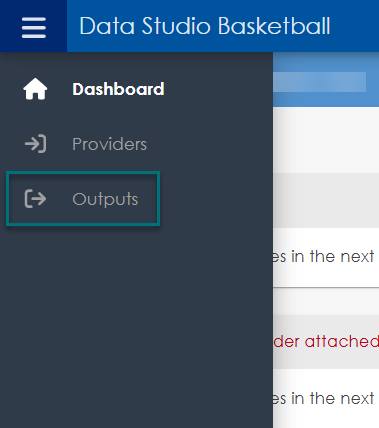

  1. Go to the Outputs tab from the left-hand menu.

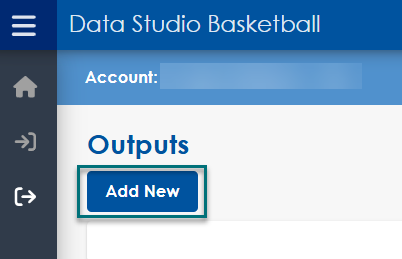

  1. Click Add New.

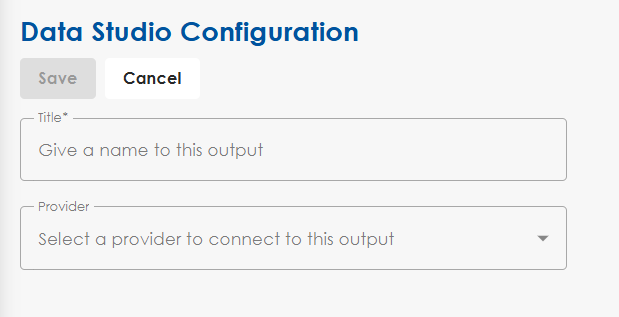

  1. Enter a Title for the output.
  2. Select a Provider from the drop-down menu.
  3. Click Save.

To Edit or Delete an Output:

  1. Edit: Select the Output, make updates, click Save.

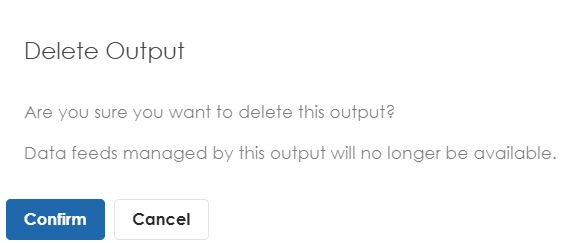

  2. Delete: Click the trash icon and confirm.

⚠️ Note: This process cannot be undone.

Schedule a Game or Replay

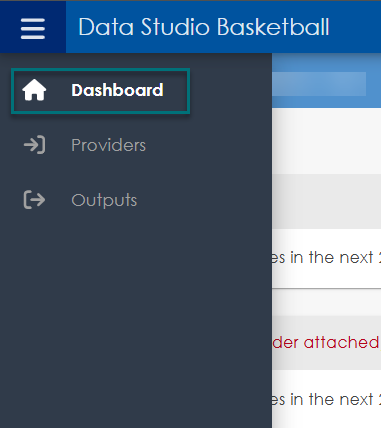

  1. Navigate to the Dashboard tab from the left-hand menu.
    The Dashboard is where media from the provider is scheduled to outputs. It lists Recent and Upcoming Games and allows quick editing of outputs.

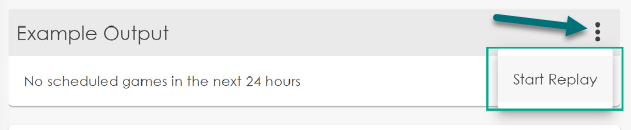

  1. Click the three-dot menu on the desired Output Panel, and then click Start Replay.

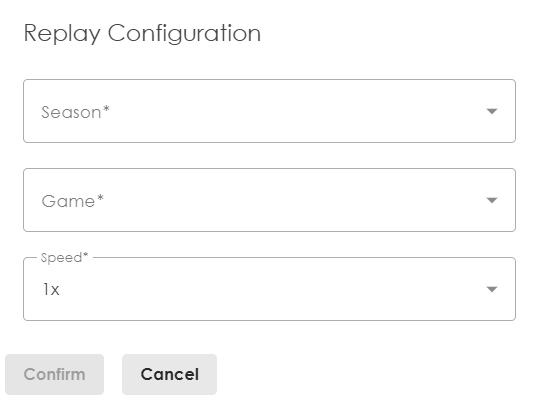

  1. Choose a Season and Game.
  2. Select a Playback Speed (e.g., 1x, 2x).

  1. Click Confirm to begin the replay.

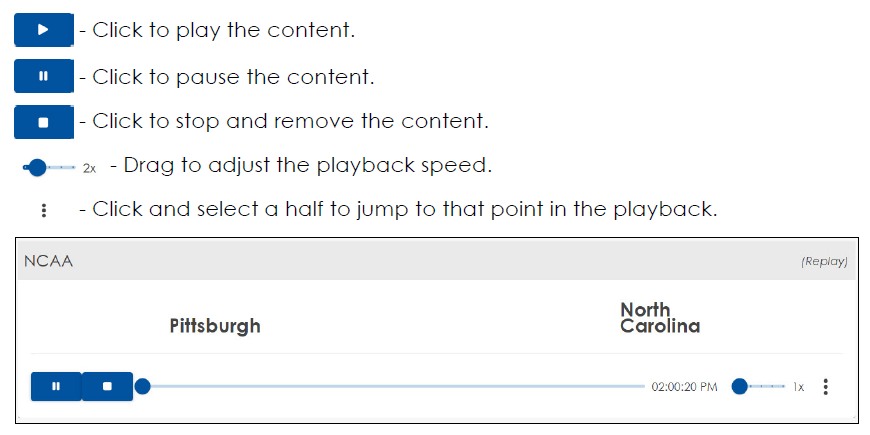

Control Replay Playback

Once a game or replay is scheduled, use the Dashboard to control playback:



    Related Resources
    Venus Control Suite: Data Studio Basketball Quick Guide
    Venus Control Suite: Data Studio Basketball Support
    Data Studio: How do I verify my feed for sports?
    Data Studio Basketball: NBA Gameday Procedures
    Data Studio Basketball: NCAA Gameday procedures
