Fuelink 5: How to loopback the FL5 Controller

Topic

  • How do I run a loopback test with a FL5 Controller?
  • How do I troubleshoot an FL-5000 system that is using wireless communication?
  • How to perform loopback testing on FLD5-2000 communications?
  • Loopback testing for a hardwired FLD5-2000 setup.

Environment

  • Product: Fuelight, FL-5000
  • Component: FL5, FL5 Controller
  • Control System:

Steps

    485 Loopback Test
    • 2 paper clips or small conductors.
    • Small flathead screw driver (eyeglass or jeweler's size)
    1. If white 4 pin cable is connected to FL5 Controller remove.
    2. Connect Sign 1 RS-485 + to Sign 2 RS-485 +
    3. Connect Sign 1 RS-485 - to Sign 2 RS-485 -
    4. Run 485 Loopback test
    485 Port A/B Internal Loopback – These tests check internal function of the transceivers
    1. Remove all signal cables (white 4 pin and terminal block) from FL5 Controller.
    2. Run 485 Port A/B Internal Loopback
    232 Port Loopback -Point of Sale
      • 1 paper clips or small conductors.
      • Small flathead screw driver (eyeglass or jeweler's size).

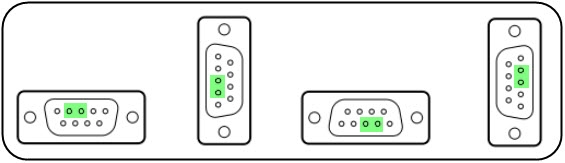

    1. Connect pins 2 and 3 on the POINT OF SALE jack on the side of the FL5 Controller.
      1. DD4049055_POS_PORT_TEST.jpg
    2. Run 232 Port Loopback

    KB ID: 000030151
