How to Remove a Module from a Vanguard Walk-In Display
Topic
How do I remove a module from a Walk-In Vanguard display?
Environment
- Product: VF-2020; Vanguard Walk-In Display
- Component: 16x16 RGB Module, 24x16 RGB Module
- Control System:
Steps
- Disconnect all signal and power wires to module.

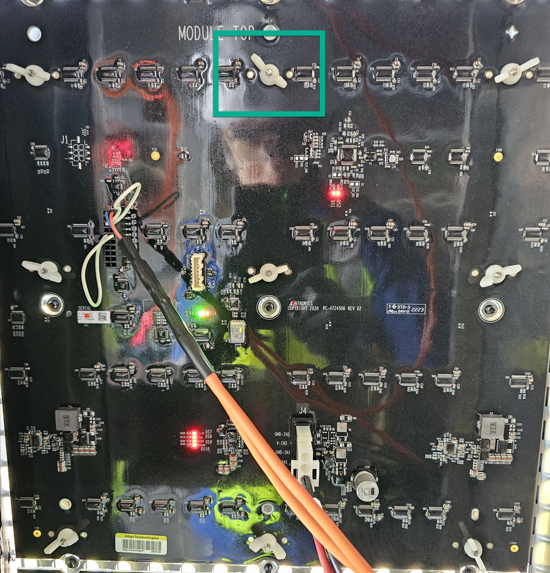

- Remove all white wingnuts holding module to face plate by turning them counter-clockwise.
- Gently pull module towards back face of display.
KB ID: 000028967
