Daktronics

Venus 1500 will not launch: Nucleus Server Loading, Services running.

Potential Symptoms

  • Venus 1500 software will not launch.
  • Control PC may be on a domain.
  • SQL Server (NUCLEUS) service is already set to Log On as Local System account.
  • Event Viewer System tab shows some Service Control Manager errors pertaining to MSSQL$NUCLEUS

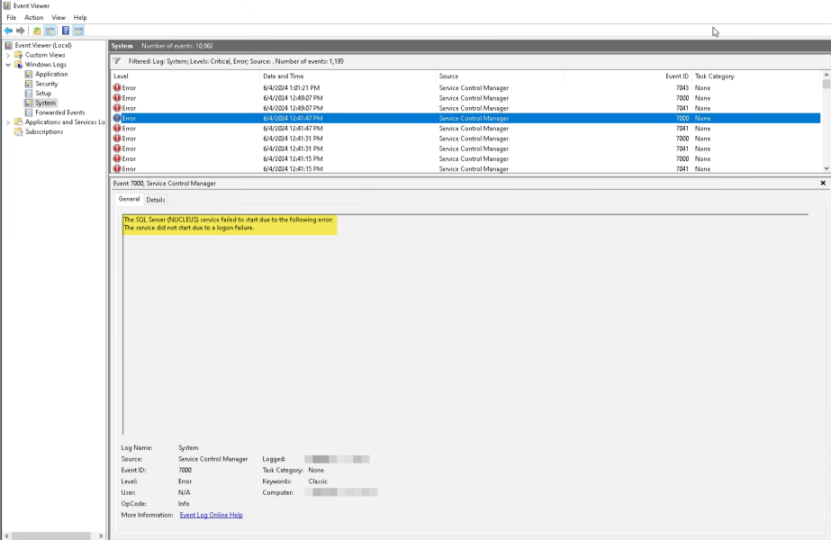

    • Event ID 7000
      • The SQL Server (NUCLEUS) service failed to start due to the following error:
      • The service did not start due to a logon failure.

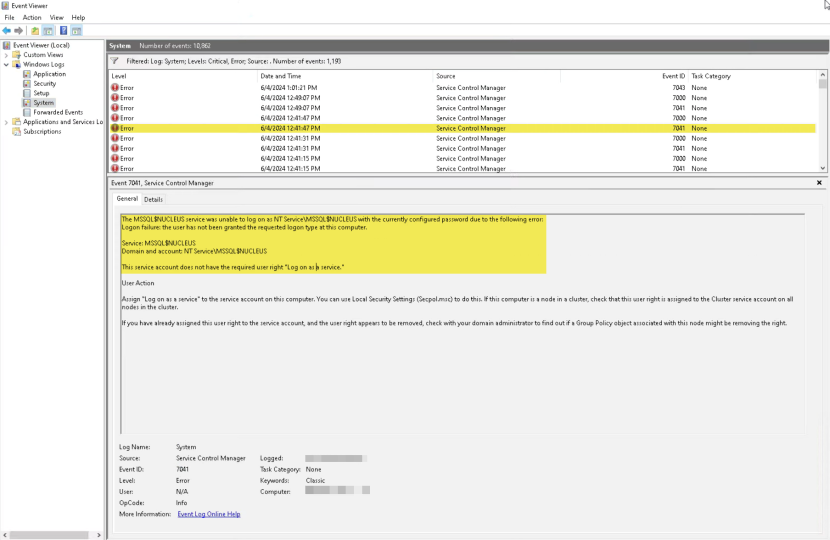

    • Event ID 7041
      • The MSSQL$NUCLEUS service was unable to log on as NT Service\MSSQL$NUCLEUS with the currently configured password due to the following error:
      • Logon failure: the user has not been granted the requested logon type at this computer.
      • Service: MSSQL$NUCLEUS
      • Domain and account: NT Service\MSSQL$NUCLEUS
      • "This service account does not have the required user right "Log on as a service."

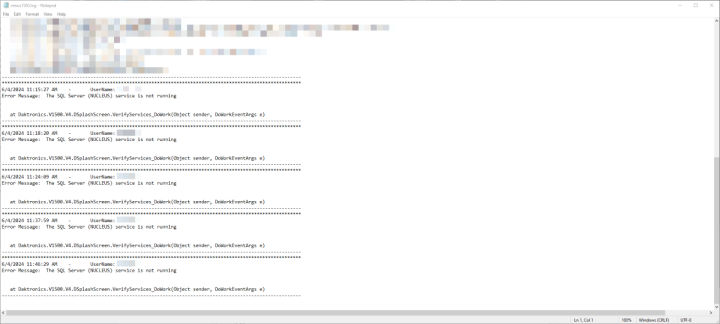

  • Venus 1500 launch log
    • Large number of errors: The SQL Server (NUCLEUS) service is not running.

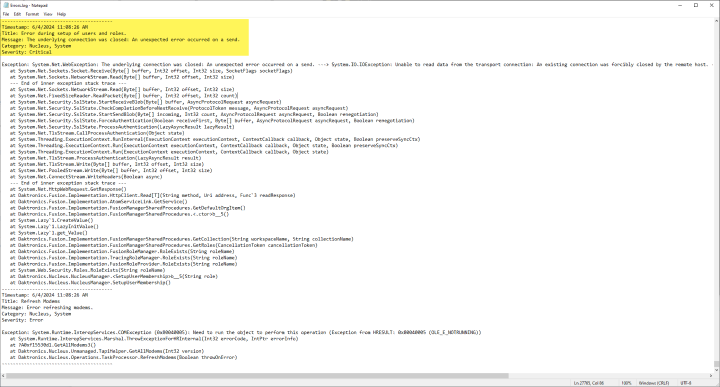

  • Nucleus Server error log
    • Error during set of users and roles.
    • The underlying connection was closed. An unexpected error occurred on a send.

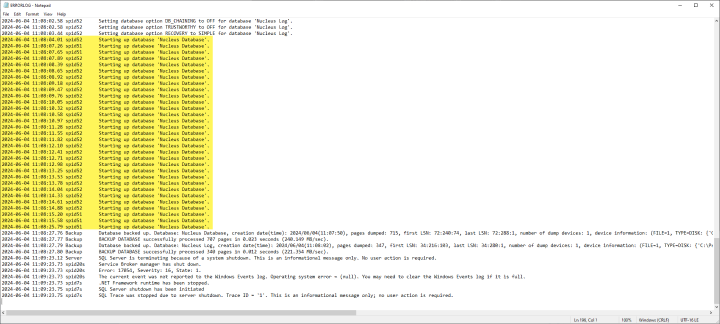

  • SQL error log has large number of entries for "Starting up database "Nucleus Database"


Environment

  • Product:
  • Component: Control PC
  • Control System: Venus 1500 version 4

Cause

  • Potential error during the installation of SQL 2014 may have assigned access incorrectly to users on the computer.

Resolution

KB ID: 000028632
