How do I perform a PLR-6050 self test?
Topic
- How do I perform a PLR-6050 self test?
Environment
- Products: DB-4000, DB-4100, DB-4200, DB-5000, DB-6000, DB-6400, GP3, GP4, GC6, DXB-0100, BLD-0100, DVX
- Component: PLR-6050
- Control System:
Steps
- Locate the PLR with a reported problem.
- Remove protective metal cover for the PLR.

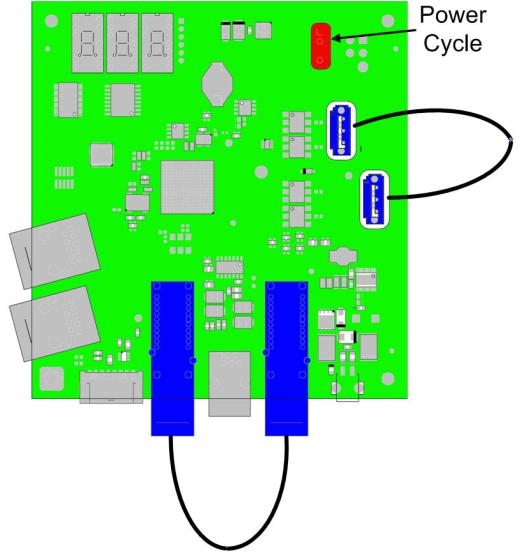

- Connect a working SATA cable and a working duplex fiber cable as shown below.
- Power cycle the PLR by disconnecting the power cord and re-connecting it.
- Watch the LCD display on the PLR & use the chart below to see the results of the self-test.
- If the PLR passes, re-connect to see if the problem disappears.
- If the PLR fails, note the code displayed after the ERR displayed and write it on the toe tag when you send the PLR back to Daktronics.
| Code | Description |
| 8 8 8 | Testing 7-segments (held for 2 seconds) |
| t s t | Initial test in progress (60-seconds) |
| P A S | All tests passed |
| E r r | Test failures reported |
| F 0 1 | Fiber Port A Error |
| F 0 2 | Fiber Port B Error |
| F 0 3 | RJ45 IN (Port A) Error |
| F 0 4 | RJ45 OUT (Port B) Error |
| F 0 5 | ProLink5 (SATA) Port A Error |
| F 0 6 | ProLink5 (SATA) Port B Error |
| F 0 7 | ISAC Error |
| F 0 8 | Fan Control Error |
| F 0 9 | Voltage Error |
| F 0 A | Temperature Error |
| F 0 B | ID Error |
| F 0 C | Serial Flash Error |
| F 0 D | EPLD Error |
| F 0 E | EPLD Oscillator Error |
| F 0 F | EEPROM Error |
| F 1 0 | Firmware Error |
| F 1 2 | 7-Segment Error |
KB ID: 000028469
