No power to scorers table outlets; resettable breaker tripped

Potential Symptoms

  • No power to the scorers table outlets.
  • While there is power to the display, unable to power devices like the All Sport that is connected to the convenience outlets.

Environment

  • Product: Scorer's Table, ST-3100
  • Component: Convenience & USB Outlets, 10 Amp resettable breaker, S-1203
  • Control System:

Cause

  • Resettable breaker tripped.
    • Switch is not pressed in.

Resolution

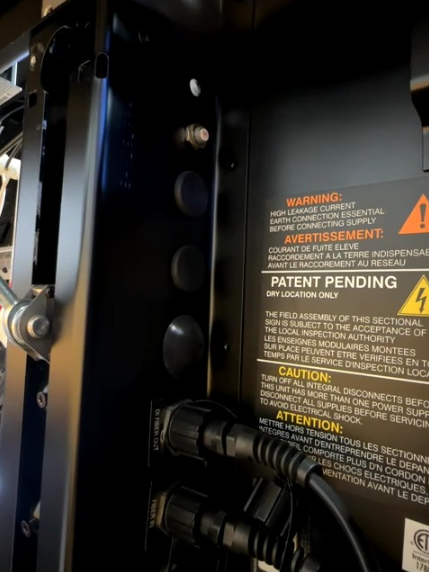

  1. Reset the breaker.

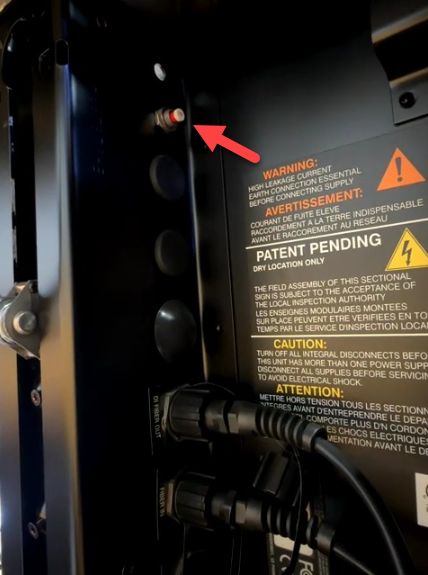

    • Press the button IN to reset.


Convenience & USB Outlets

Scorers tables are equipped with 6, 8, or 10 convenience outlets, depending on the table's width, for plugging in control equipment and other small electronic devices. A 10 Amp resettable breaker limits the total convenience outlet power draw. Tables also feature 8 USB outlets (2 outlets with 4 ports each) to power cellphones, tablets, and other equipment with USB chargers.
Refer to the Block Diagrams in Appendix A for outlet and resettable breaker locations.
