Data Studio: Gameday procedures with Virtius competition software?

Topic

Virtius is an online competition software for gymnastics that uses web streaming technologies for judges scoring.


Environment

  • Product:
  • Component: Gymnastics Virtius System Data Studio
  • Control System: College gymnastics

Steps

Virtius is web-based platform that can be accessed from any device that connects to a browser. They provide JSON and XML API outputs.

Add the API link to the Data Studio > Data Sources.

  1. Obtain the competition link from Virtius.The JSON/XML addresses are per session (competition). Each session has a unique URL.
  2. Add the link as a Data Source Data Studio: How do I configure web data sources? Either link should be able to drop into Daktronics Data Studio.

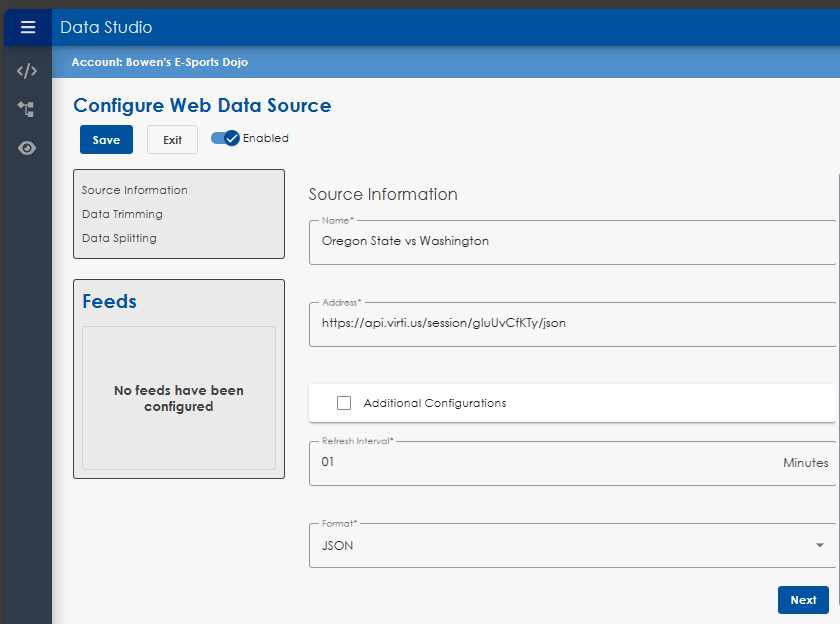

Screenshot 2023-11-30 161951.png
  1. Click on Data Trimming.
  2. Select Data Properties, Check all.
  3. Click Done.
  4. Save the new data source.

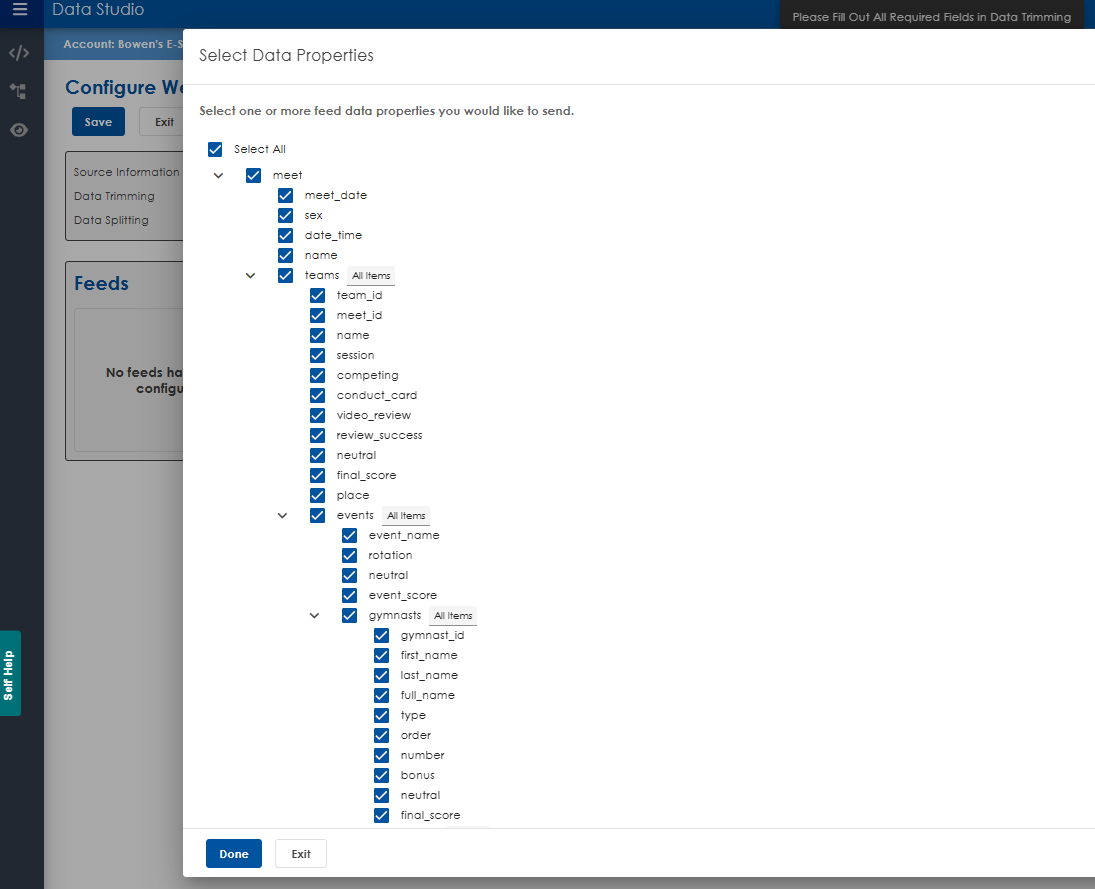

Screenshot 2023-11-30 162047.png


Verify Data Studio Sources.

  1. In Data Studio, select the source to view the feeds.
  2. Under Feeds, click on the paper clip.

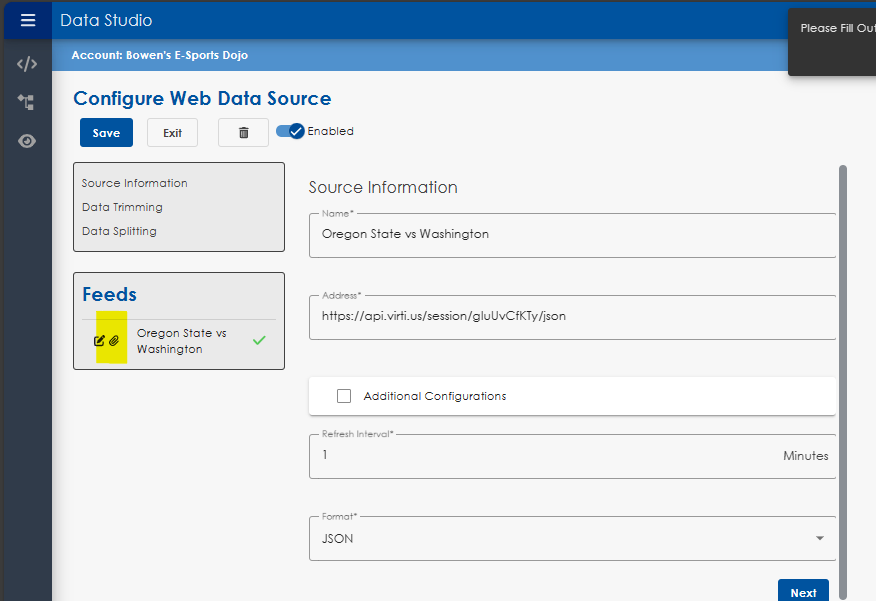

Screenshot 2023-11-30 162903.png
  1. Click on the paper clip icon to view the feed details.
  2. Sections can be collapsed and expanded to make searching easier.

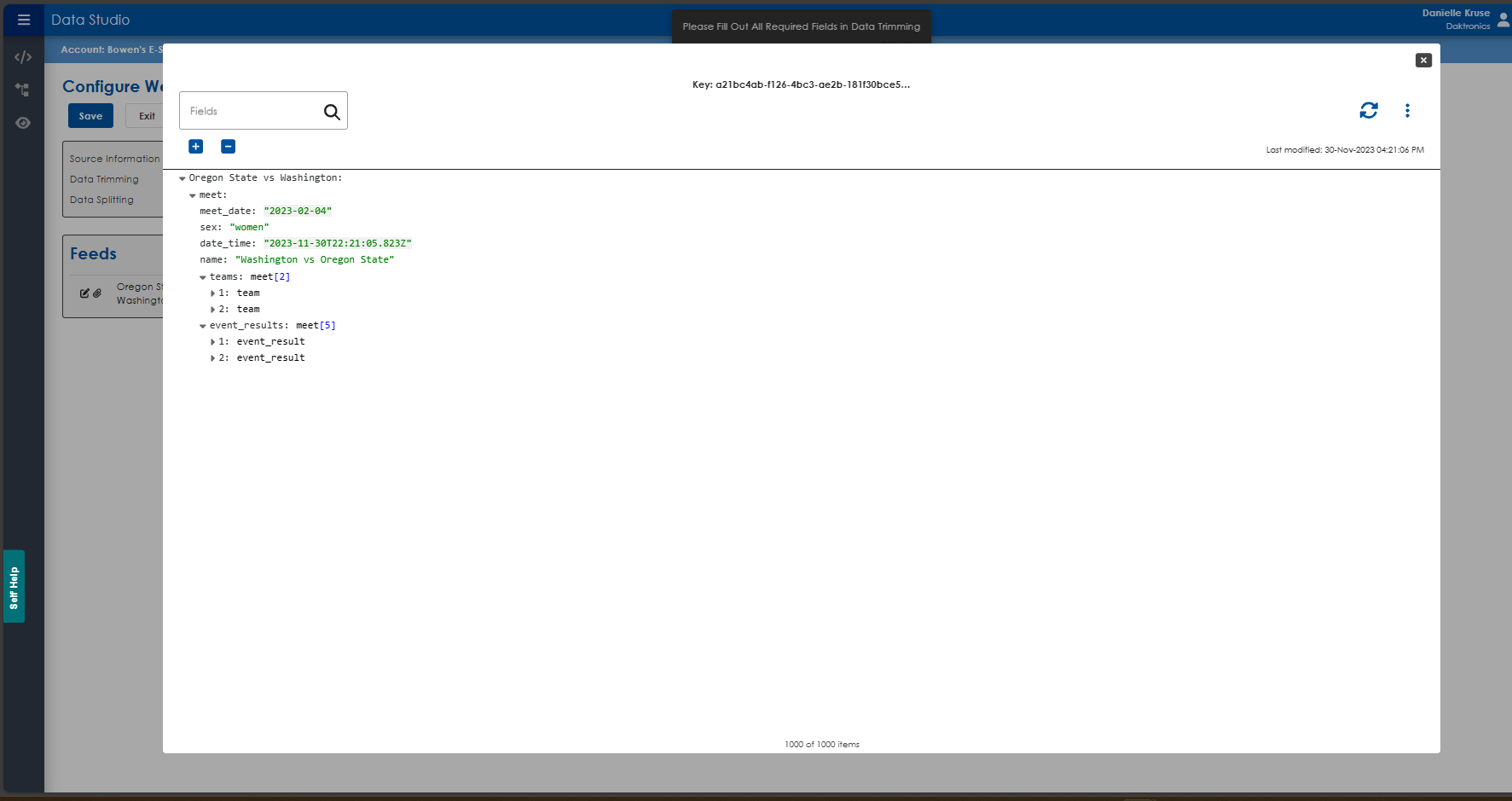

Screenshot 2023-11-30 162149.png


KB ID: 000027942
